Home > Products > Pipe Fittings > Hose Fittings > Two-Piece Hose connector

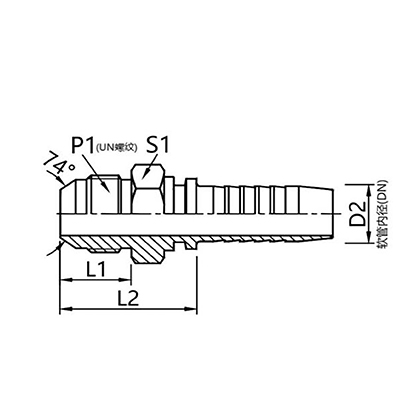

16711,16712 American JlC external thread 74 connector

Product:

16711,16712 American JlC external thread 74 connector

Description:

IS0 8434-2,SAE J514
Generally available carbon steel/galvanized surface
16711 for braided hose
16712 for spiral hose

Consult Now

+86 0551-67291852

Product Details

IS0 8434-2,SAE J514

Generally available carbon steel/galvanized surface

16711 for braided hose

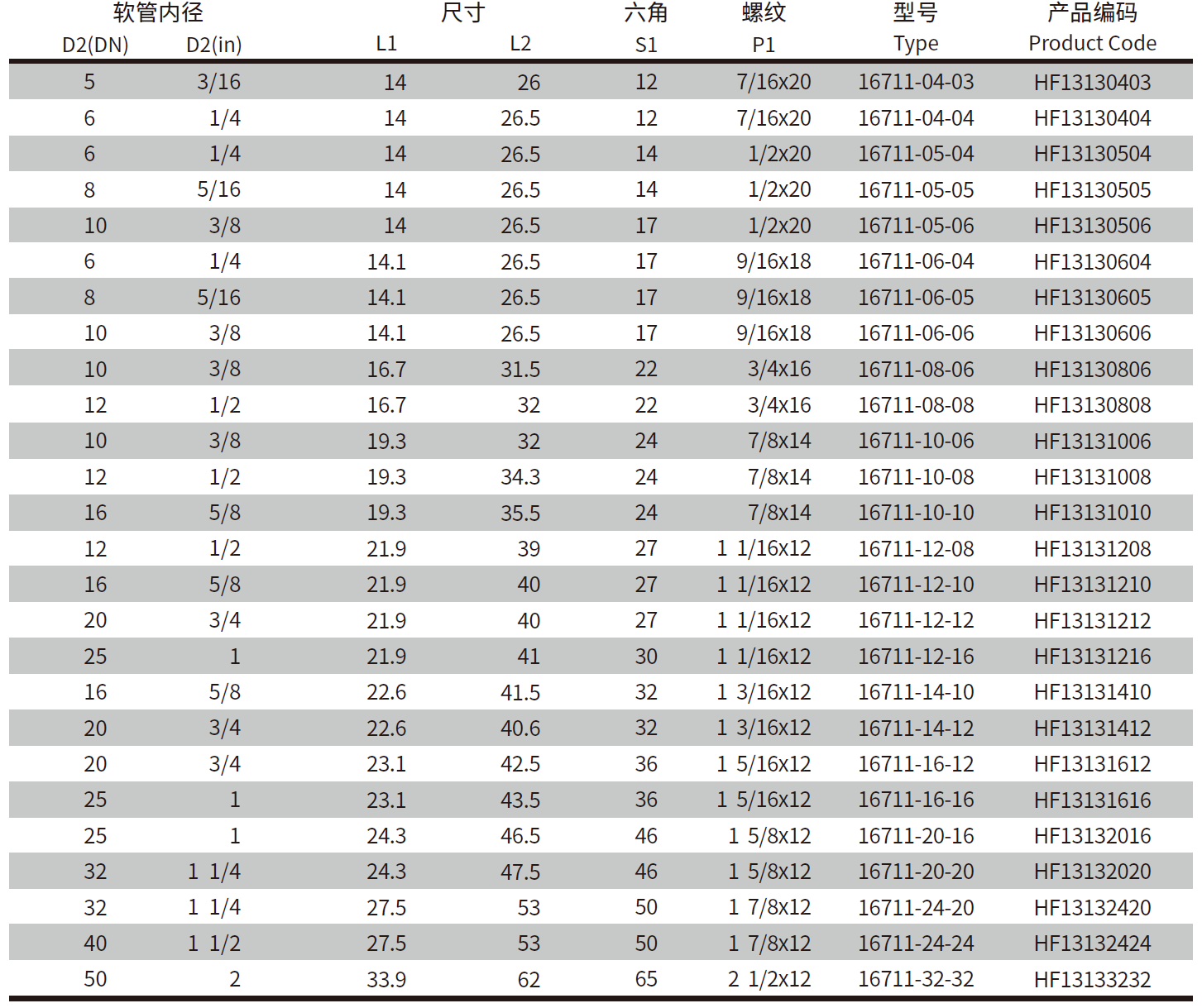

16712 for spiral hose                                                                                                                                                                                      16711,16712 American JlC external thread 74 connector(图1)16711.pdf
