Home > Products > Pipe Fittings > Hose Fittings > Two-Piece Hose connector

87391,87392(LIGHT) 87691,87692(HEAVY) 90° elbow SAE flange connector

Product:

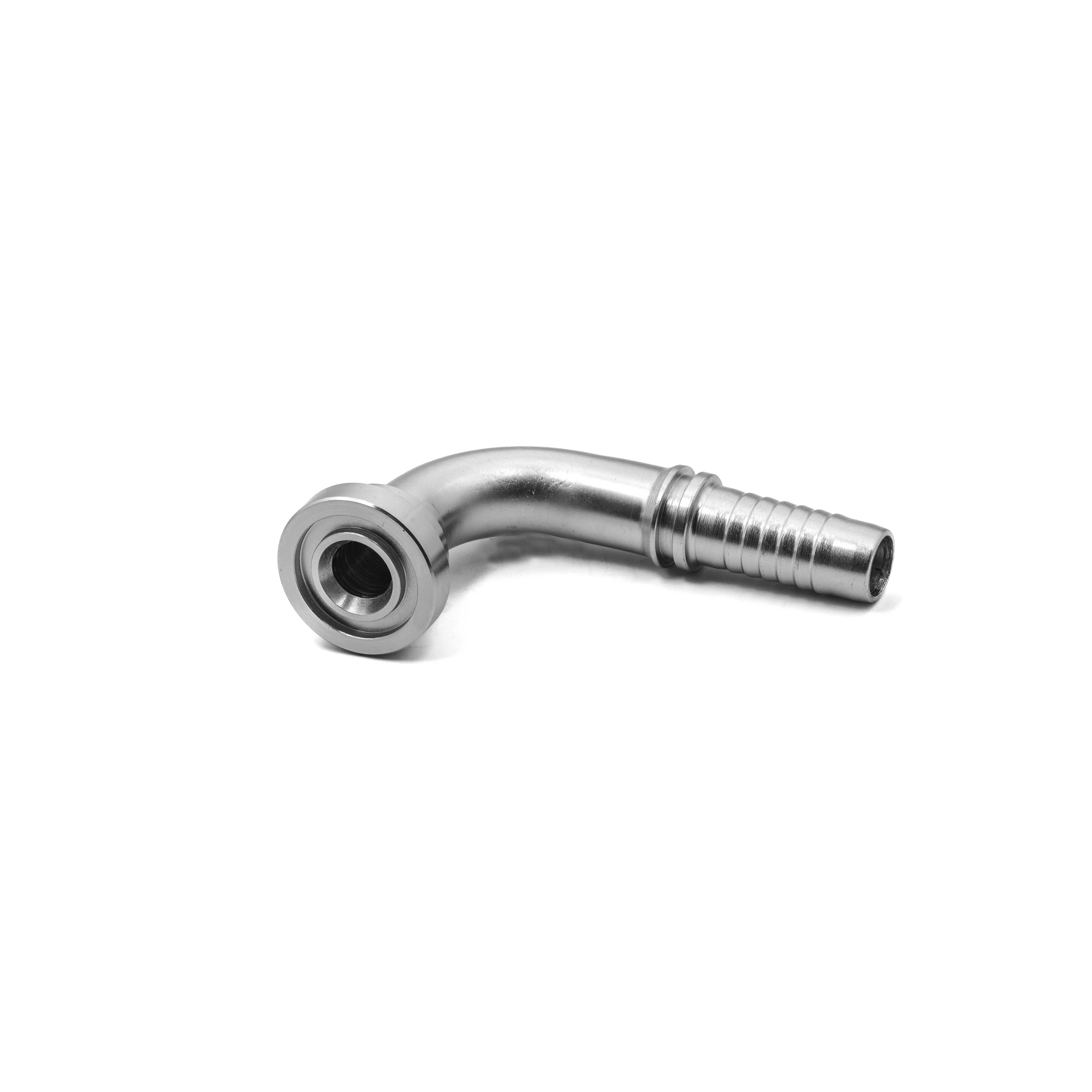

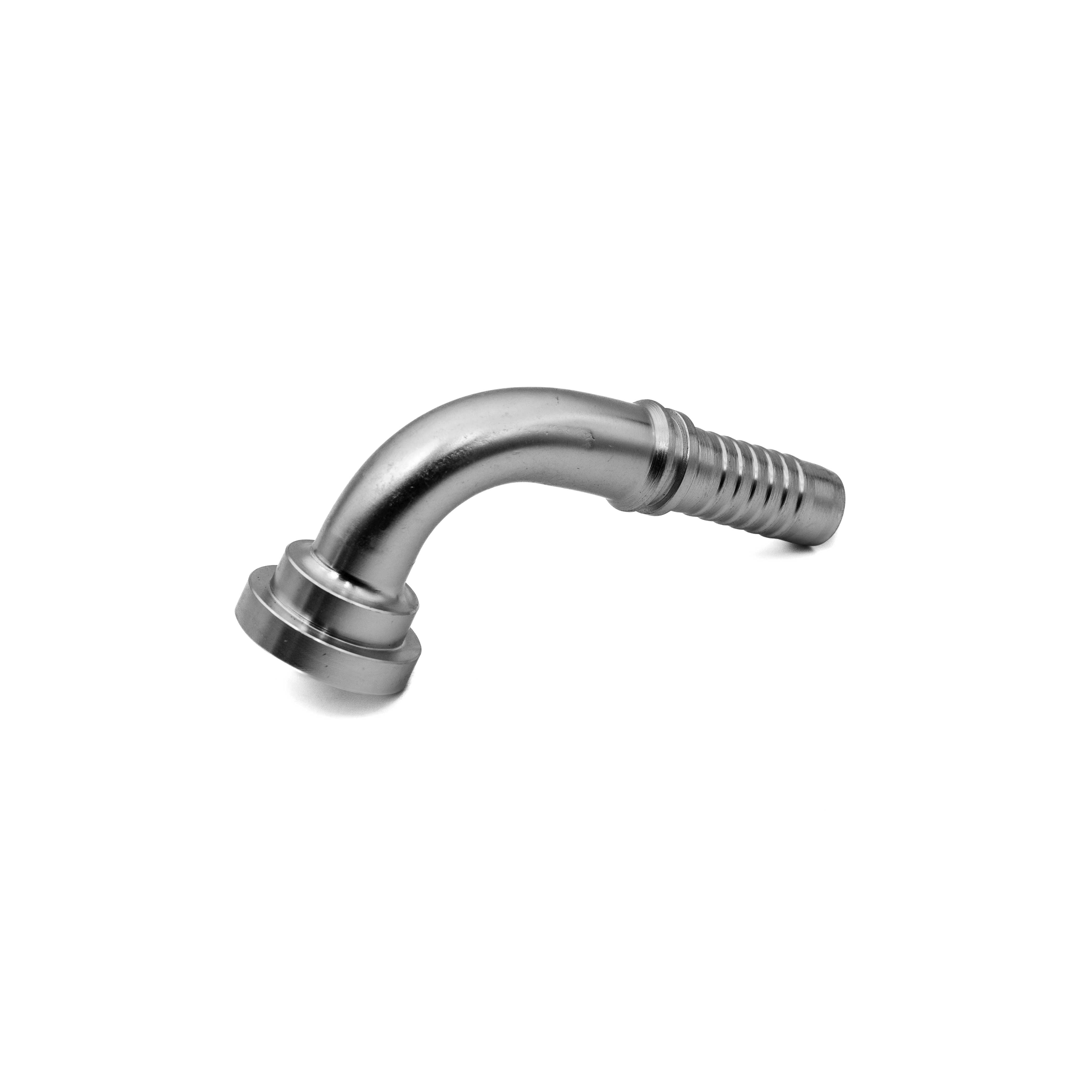

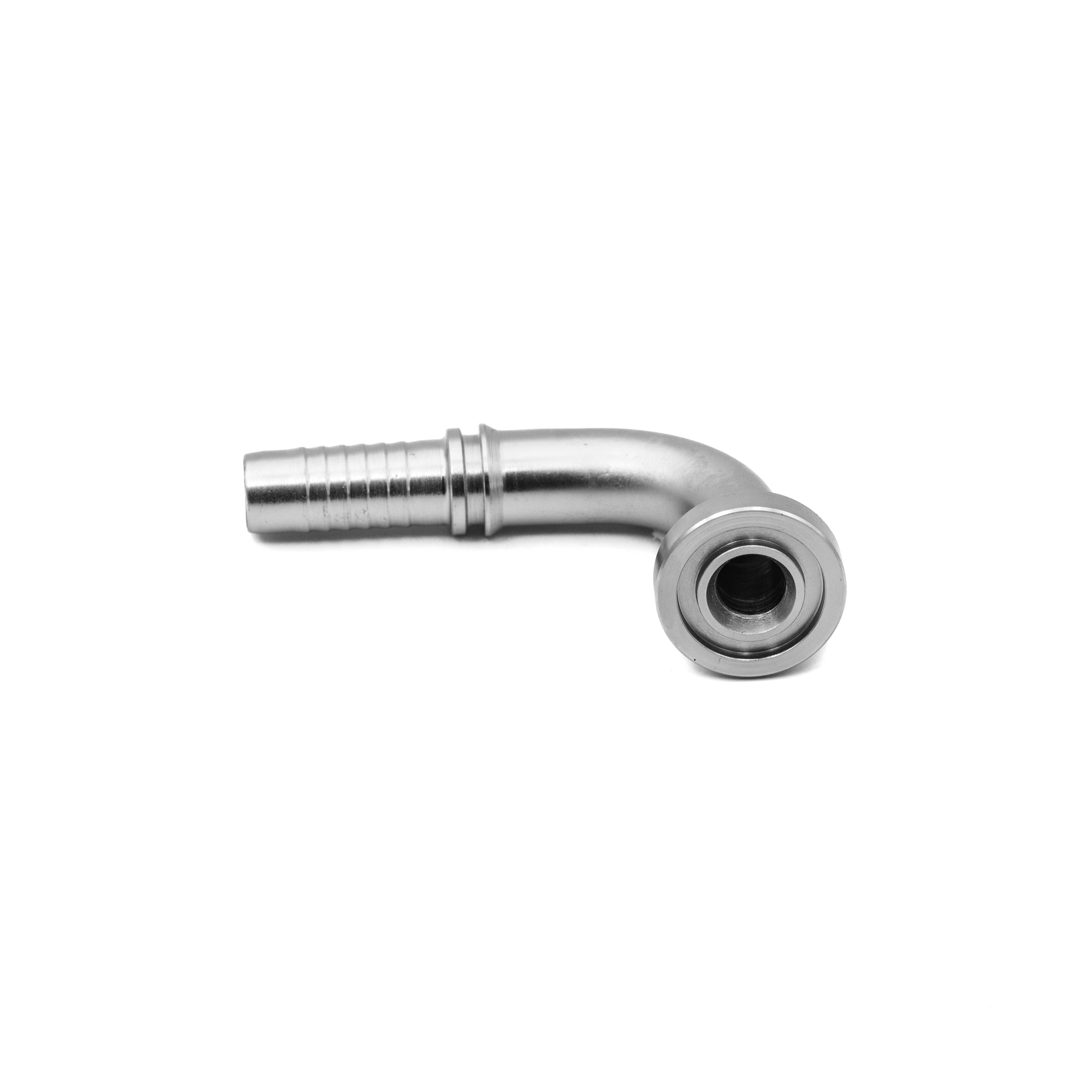

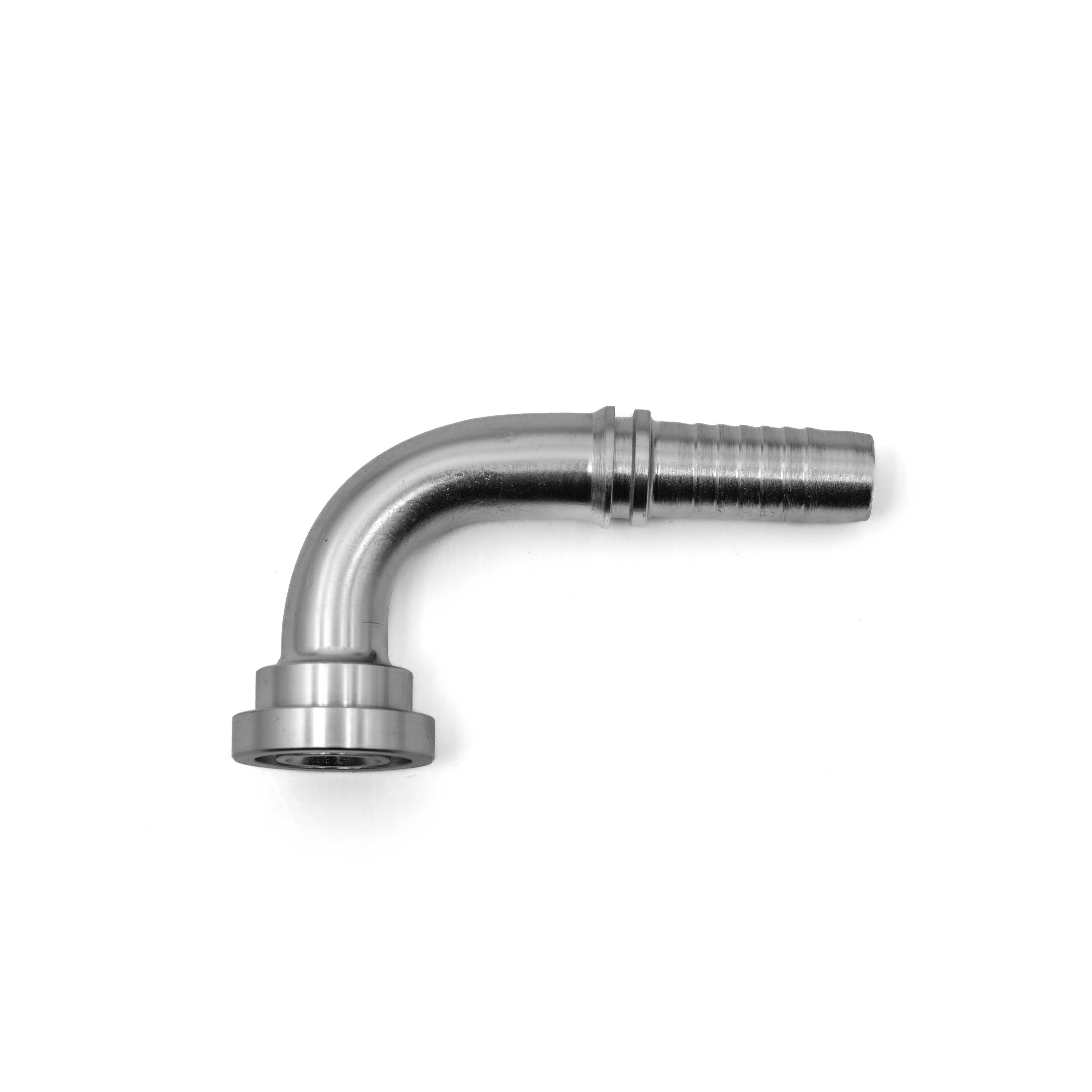

87391,87392(LIGHT) 87691,87692(HEAVY) 90° elbow SAE flange connector

Description:

ISO 12151-3, SAE J516
Generally available carbon steel/galvanized surface
87391 for braided hose, 87392 for spiral hose
87691 for braided hose, 87692 for spiral hose

Consult Now

+86 0551-67291852

Product Details

ISO 12151-3, SAE J516

Generally available carbon steel/galvanized surface

87391 for braided hose, 87392 for spiral hose

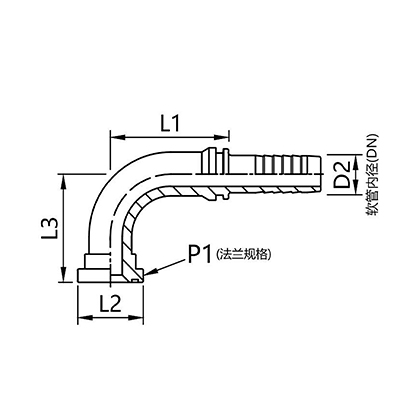

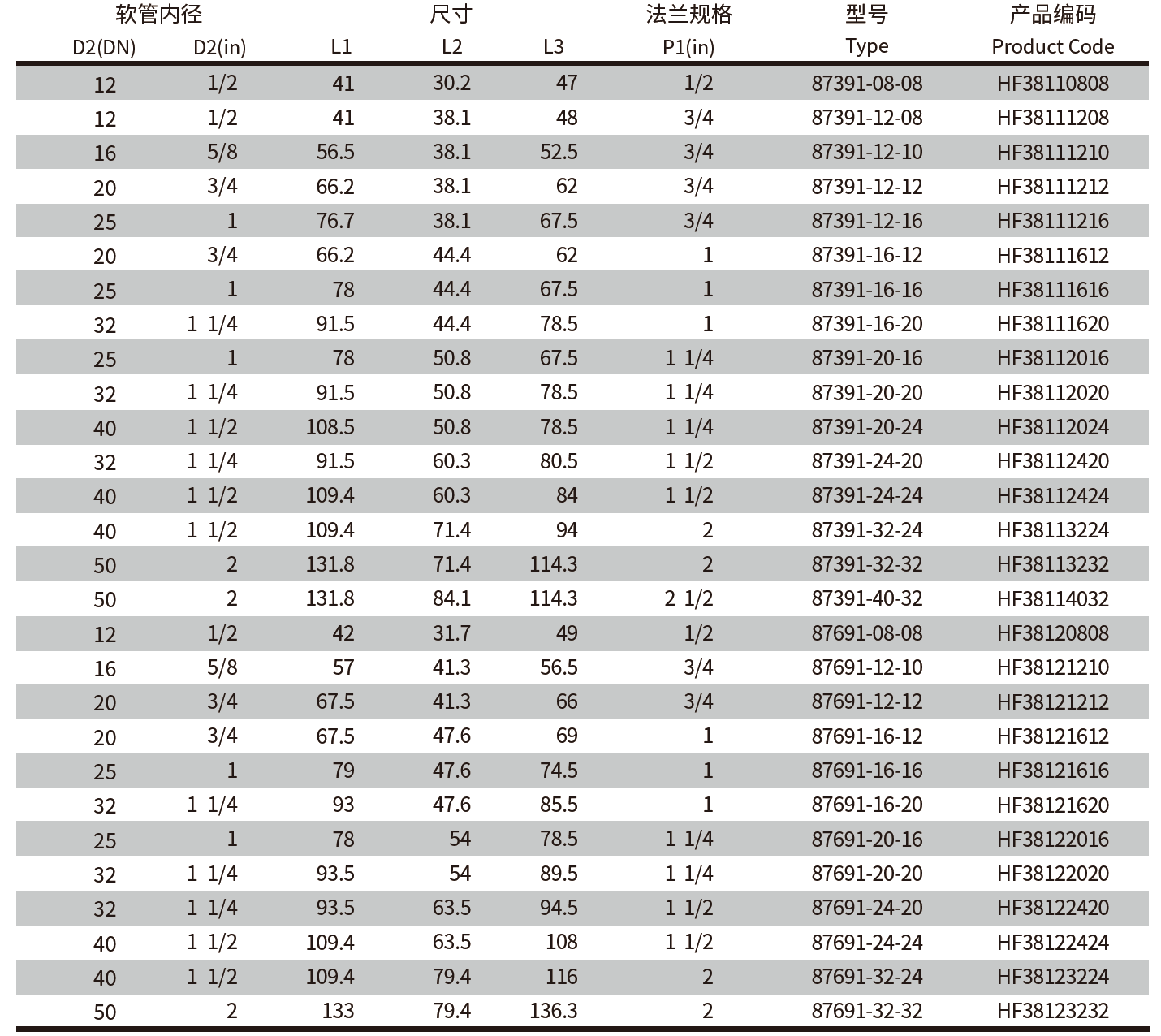

87691 for braided hose, 87692 for spiral hose                                                                                                                                               87391,87392(LIGHT) 87691,87692(HEAVY) 90° elbow SAE flange connector(图1)87391.pdf
