27811,27812 American SAE internal thread 90°internal cone connector

Product:

27811,27812 American SAE internal thread 90°internal cone connector

Description:

SAE J513
Generally available carbon steel/galvanized surface
27811 for braided hose
27812 for spiral hose

Consult Now

+86 0551-67291852

Product Details

SAE J513

Generally available carbon steel/galvanized surface

27811 for braided hose

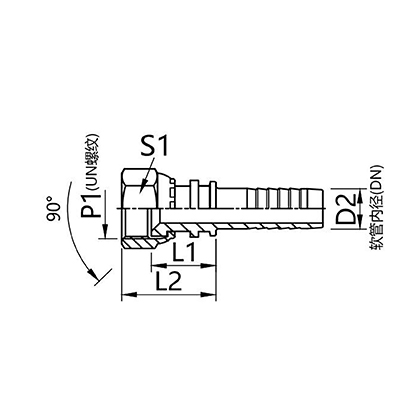

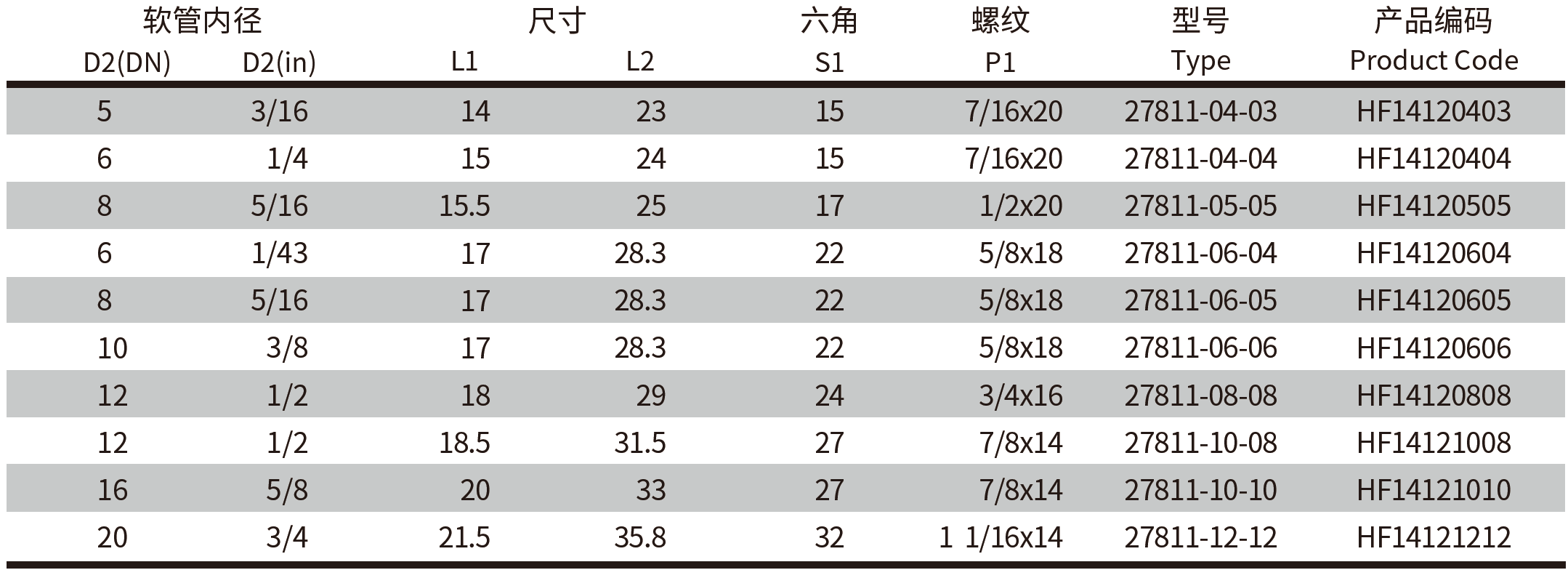

27812 for spiral hose 27811,27812 American SAE internal thread 90°internal cone connector(图1) 27811.pdf
