27841,27842 American SAE internal thread 90° internal cone 45° elbow

Product:

27841,27842 American SAE internal thread 90° internal cone 45° elbow

Description:

SAE J513
Generally available in carbon steel/galvanized surface
27841 for braided hose
27842 for spiral hose

Consult Now

+86 0551-67291852

Product Details

SAE J513

Generally available in carbon steel/galvanized surface

27841 for braided hose

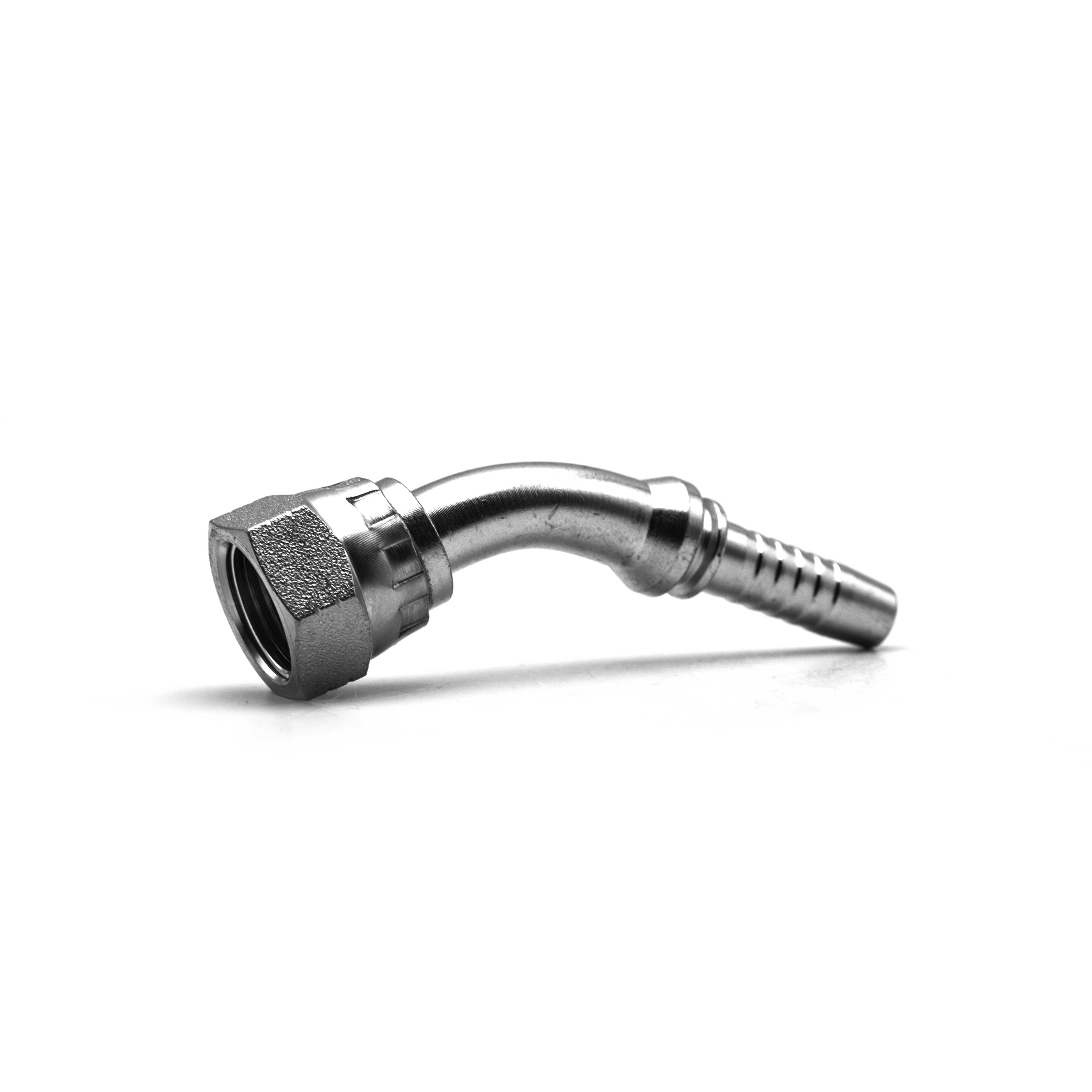

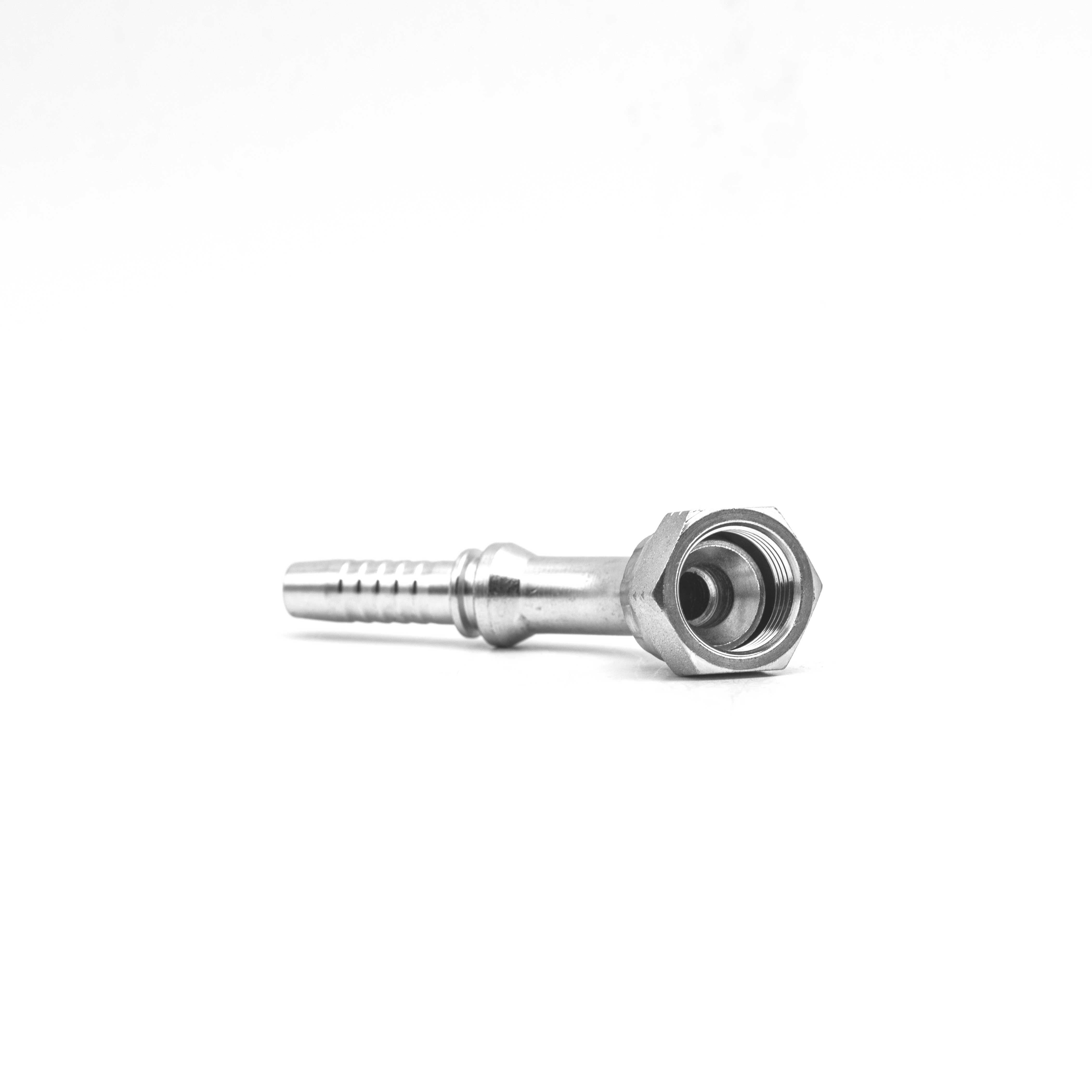

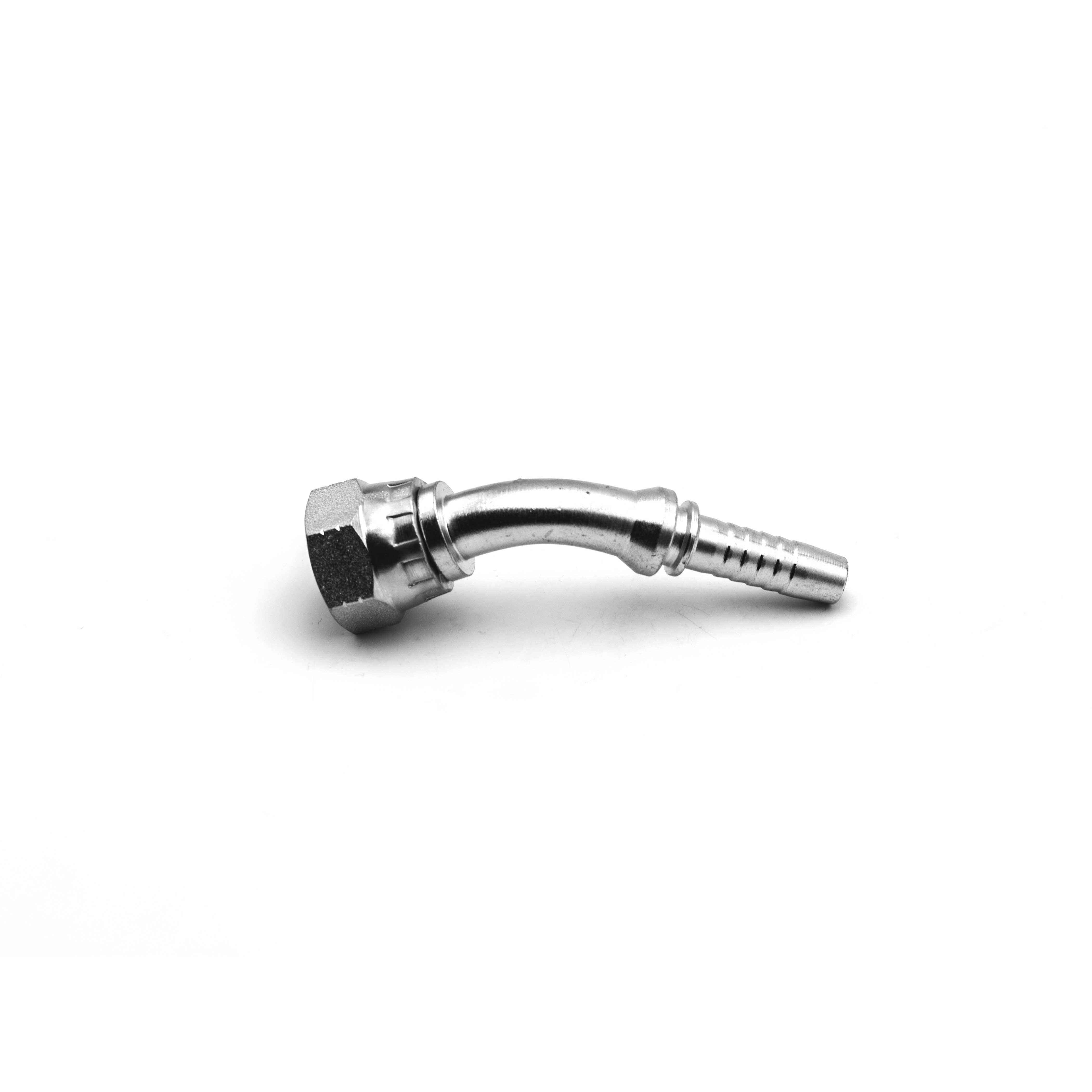

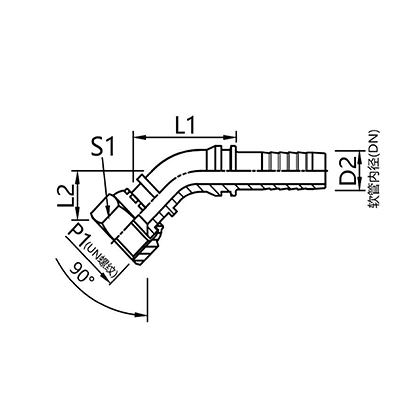

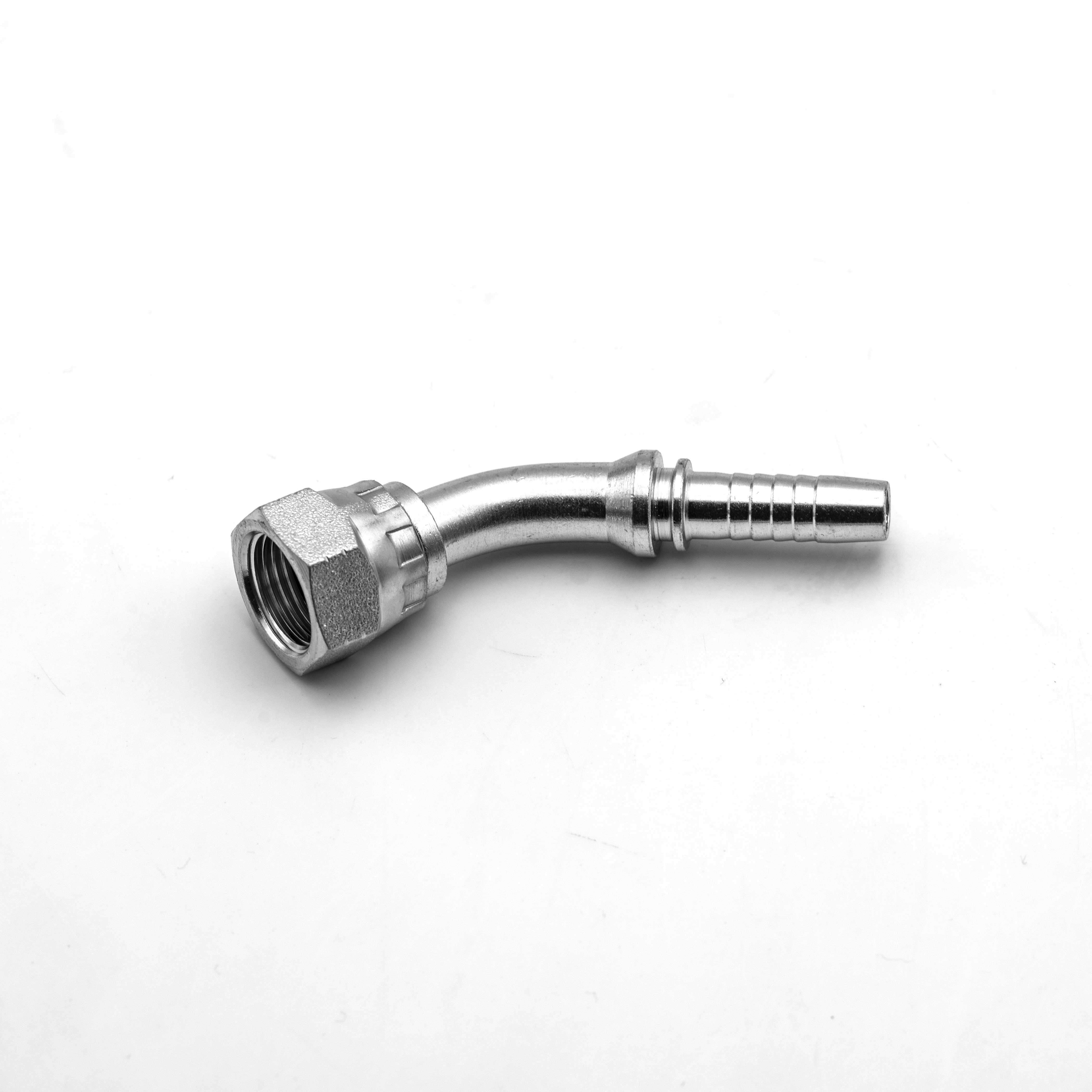

27842 for spiral hose 27841,27842 American SAE internal thread 90° internal cone 45° elbow(图1) 27841.pdf

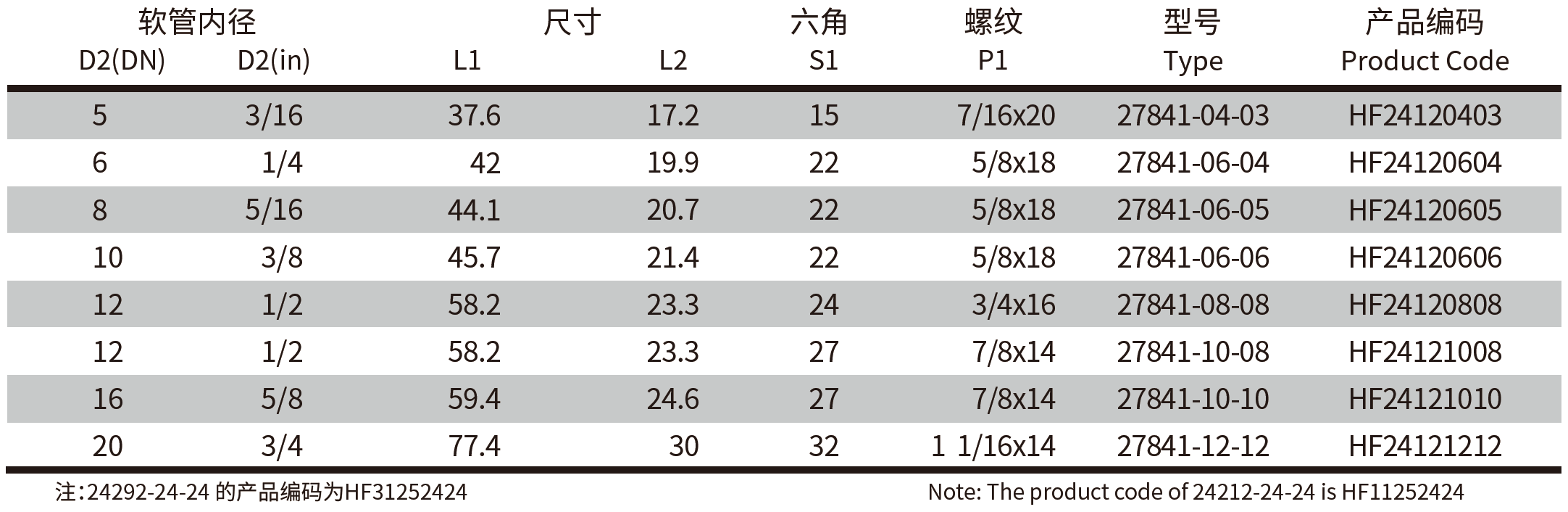

27841,27842 American SAE internal thread 90° internal cone 45° elbow(图2)
