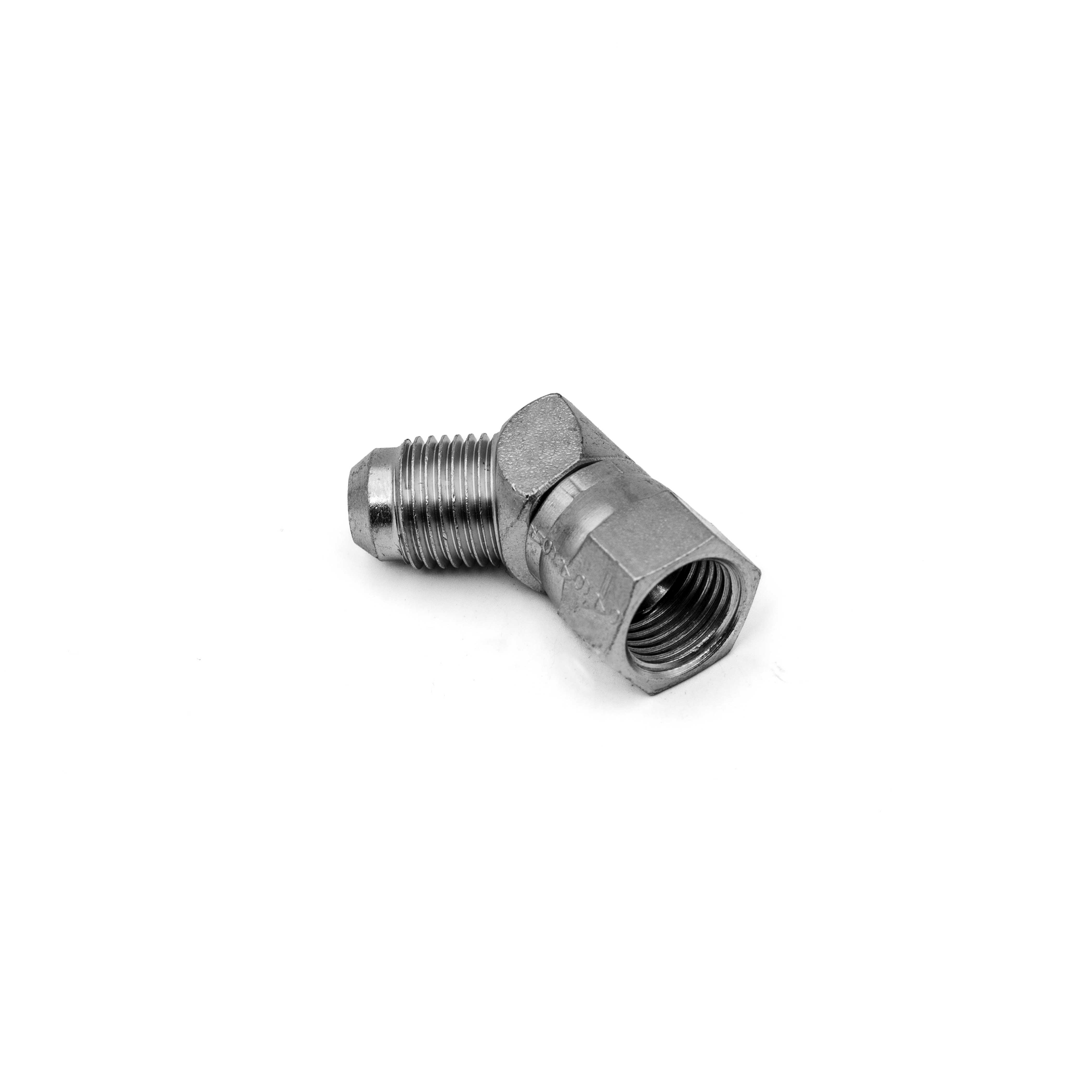

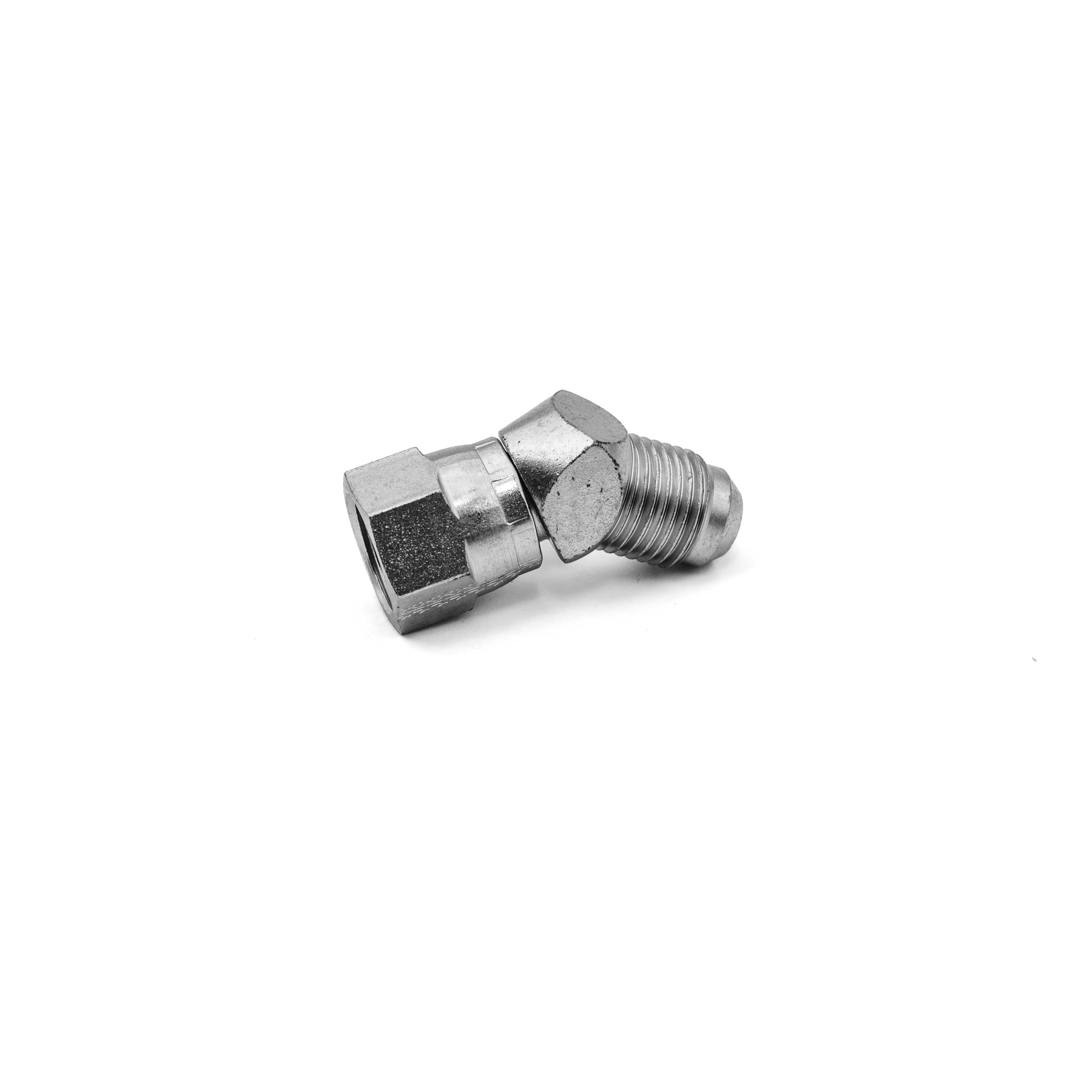

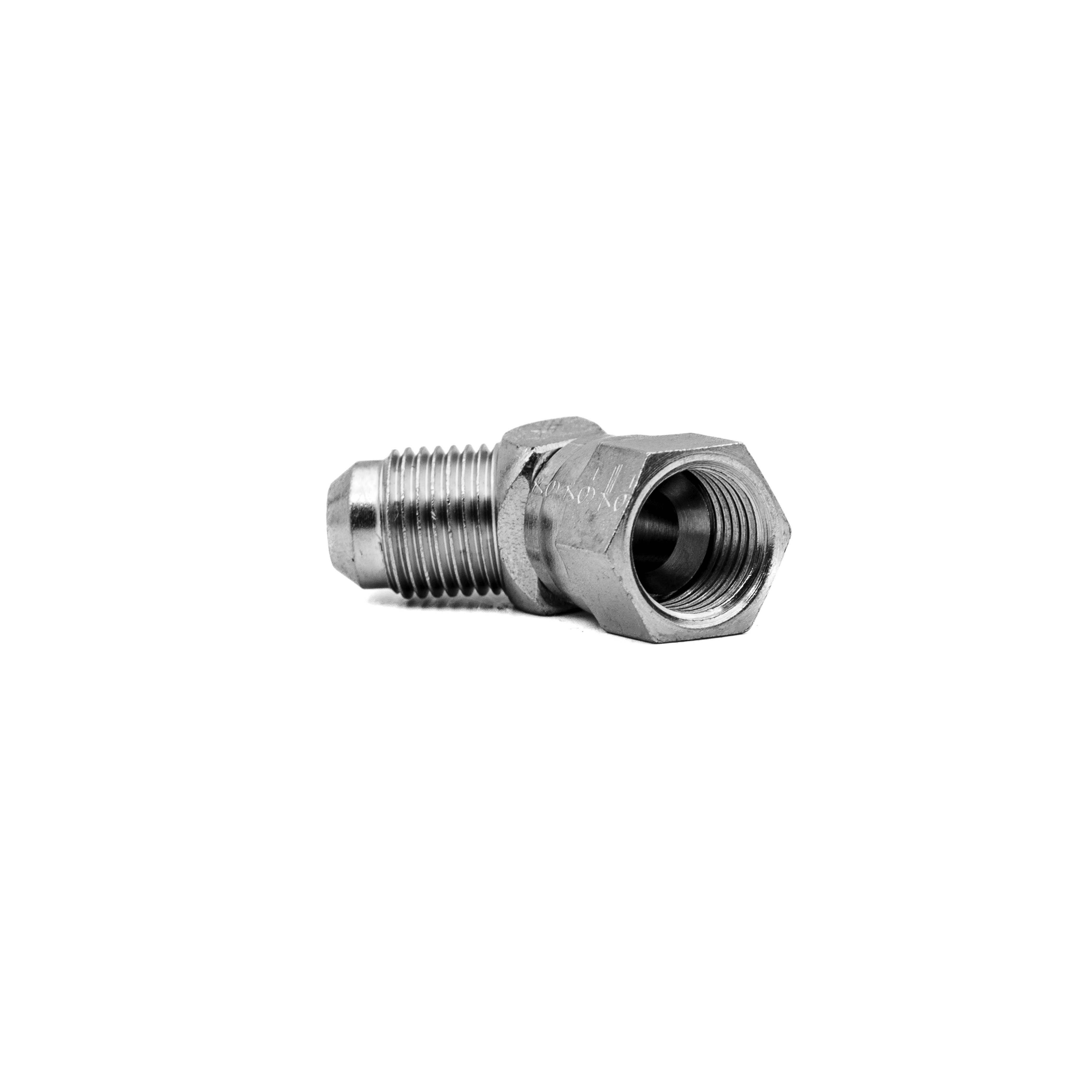

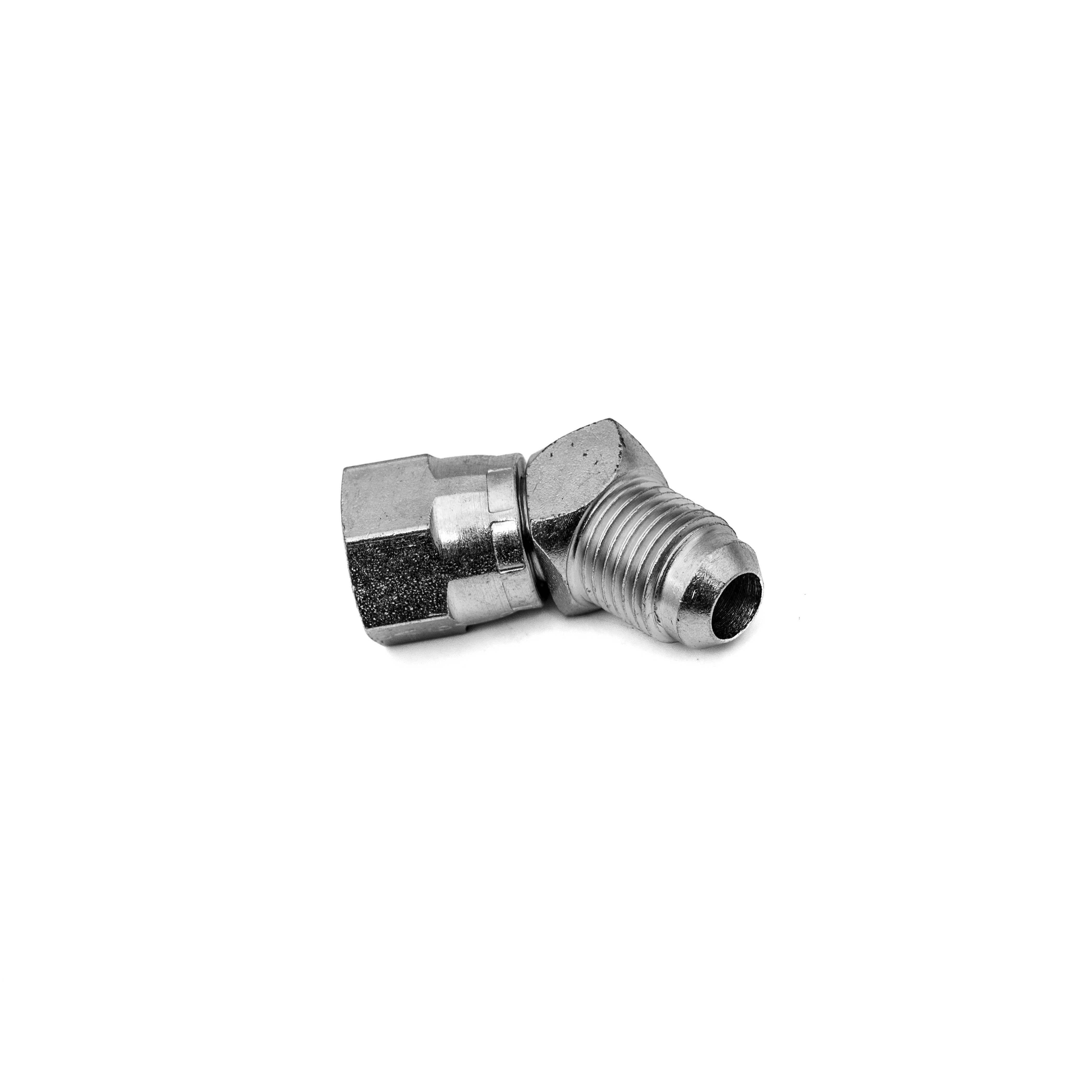

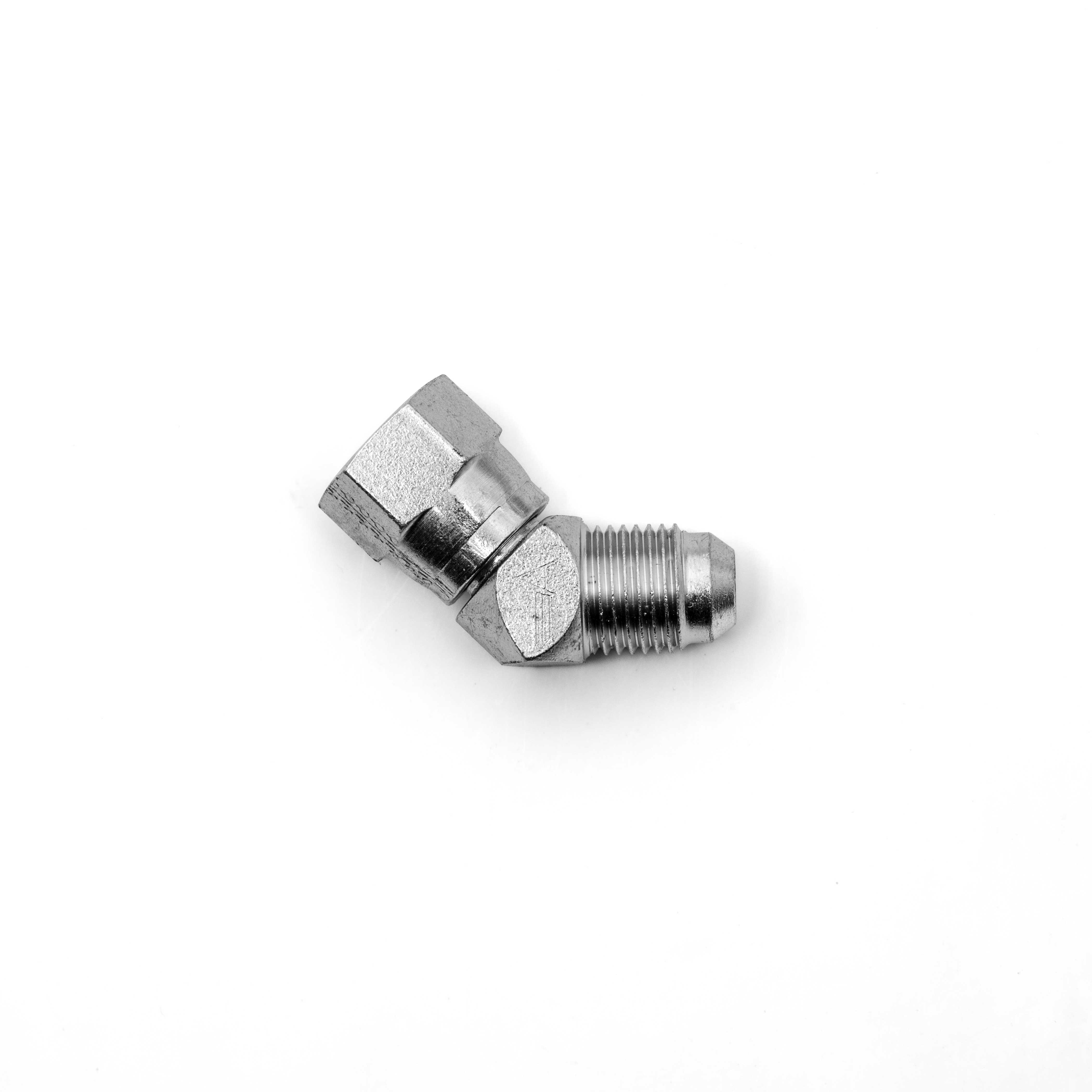

2J4 45°bend,American Jlc external thread,74°external cone JlC internal thread, 74°internal cone

Product:

2J4 45°bend,American Jlc external thread,74°external cone JlC internal thread, 74°internal cone

Description:

Commonlysupplied carbon steel/galvanized surface, stainless steel
SAE J514/ISO 8434-2 standard connector

Consult Now

+86 0551-67291852

Product Details

Commonlysupplied carbon steel/galvanized surface, stainless steel

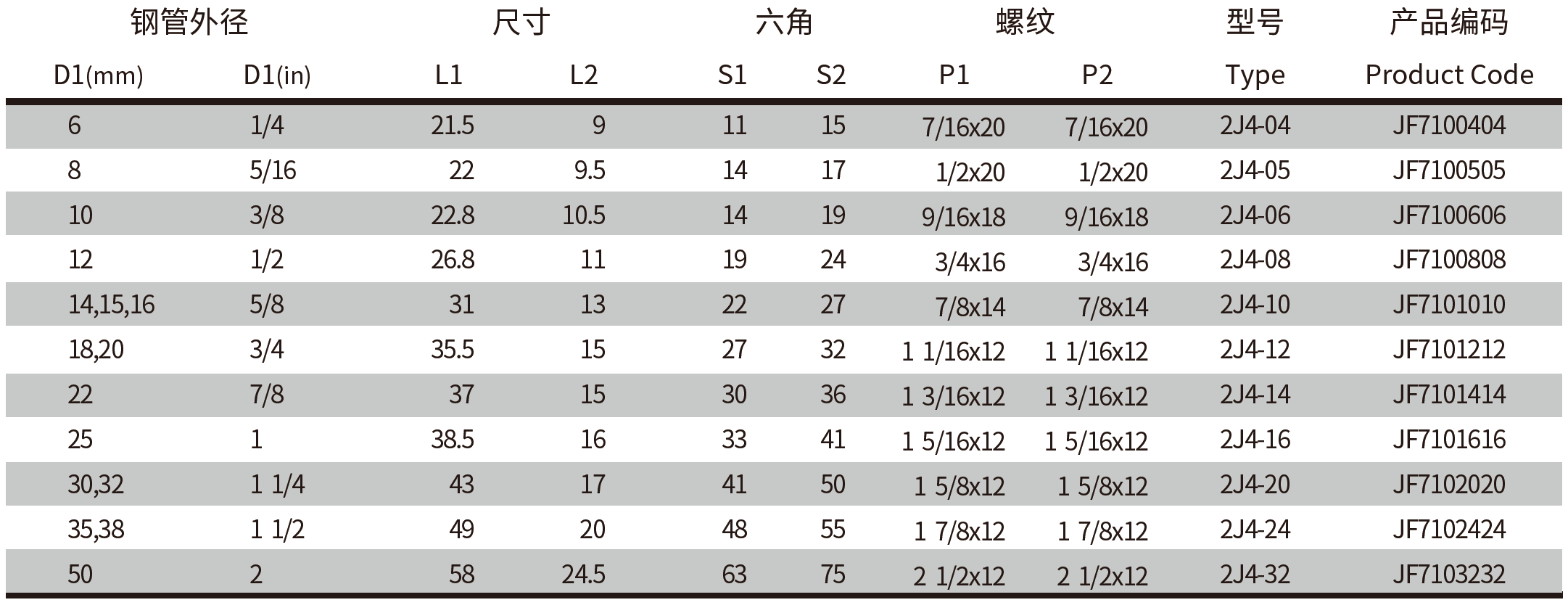

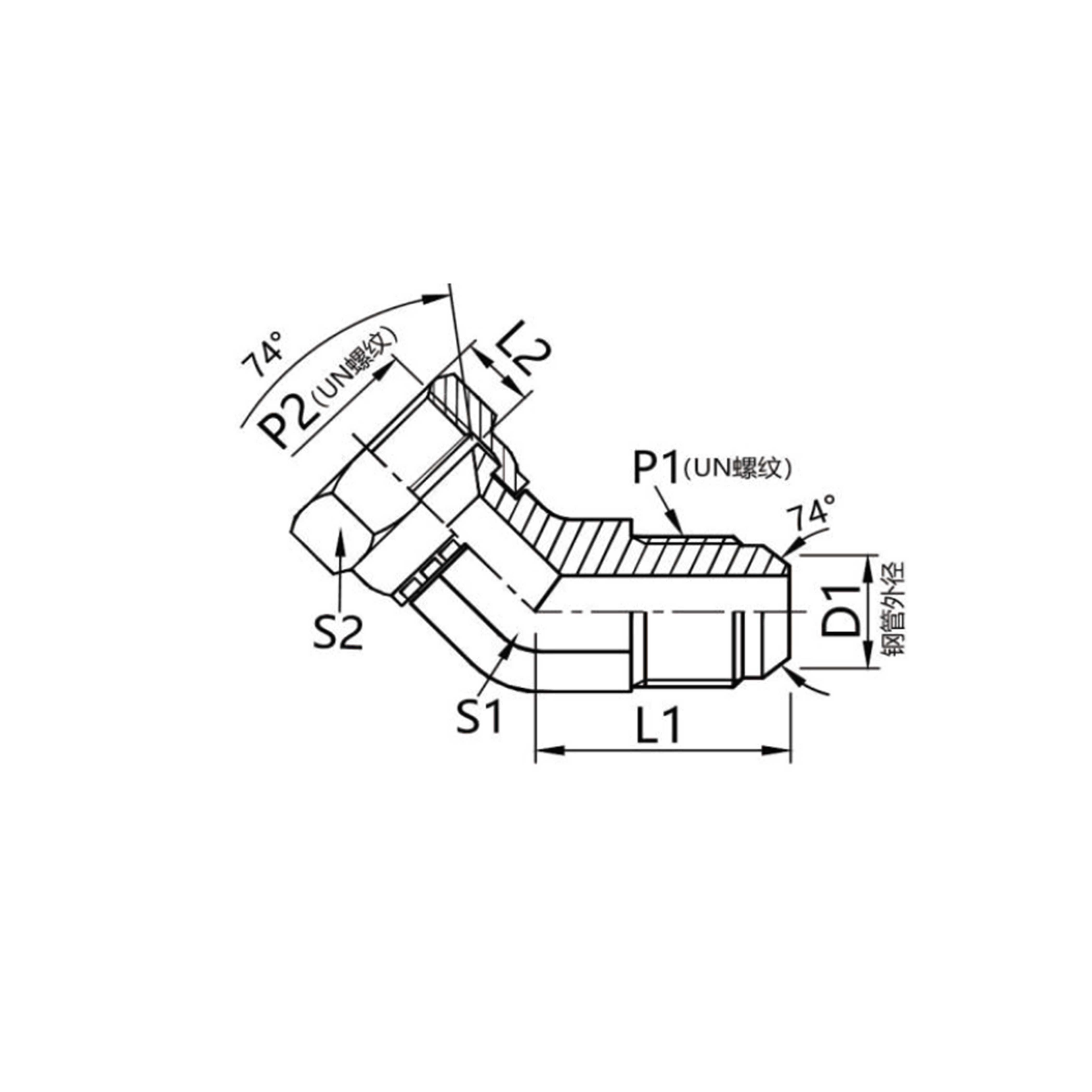

SAE J514/ISO 8434-2 standard connector 2J4 45°bend,American Jlc external thread,74°external cone JlC internal thread, 74°internal cone(图1) 2J4.pdf
