Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

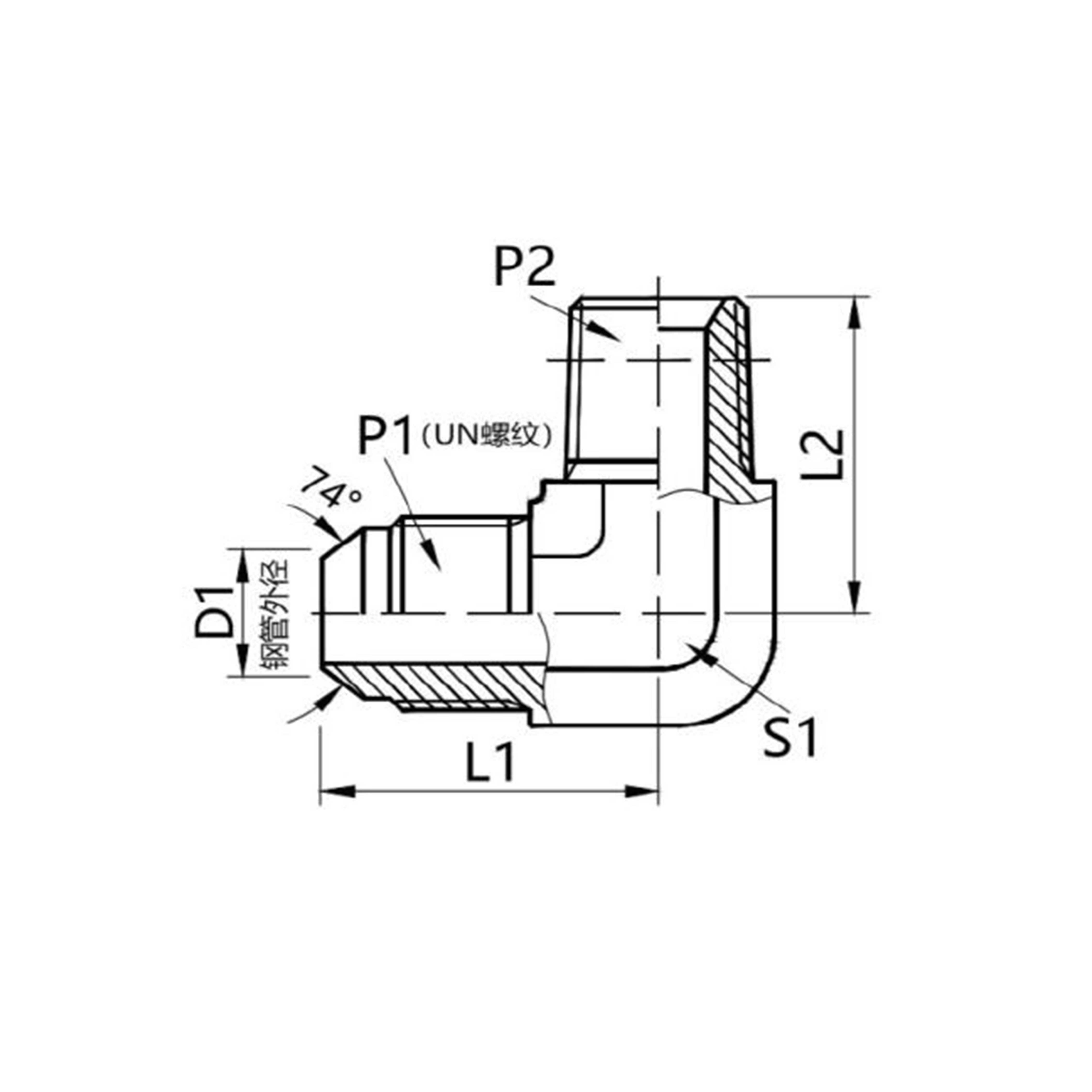

1JT9-SP 90° bend,American JlC external thread,74° external cone /British cone pipe external thread J connector

Product:

1JT9-SP 90° bend,American JlC external thread,74° external cone /British cone pipe external thread J connector

Description:

SAE J514/ISO 8434-2 standard connectors
Commonly available carbon steel/galvanized surface, stainless steel

Consult Now

+86 0551-67291852

Product Details

SAE J514/ISO 8434-2 standard connectors

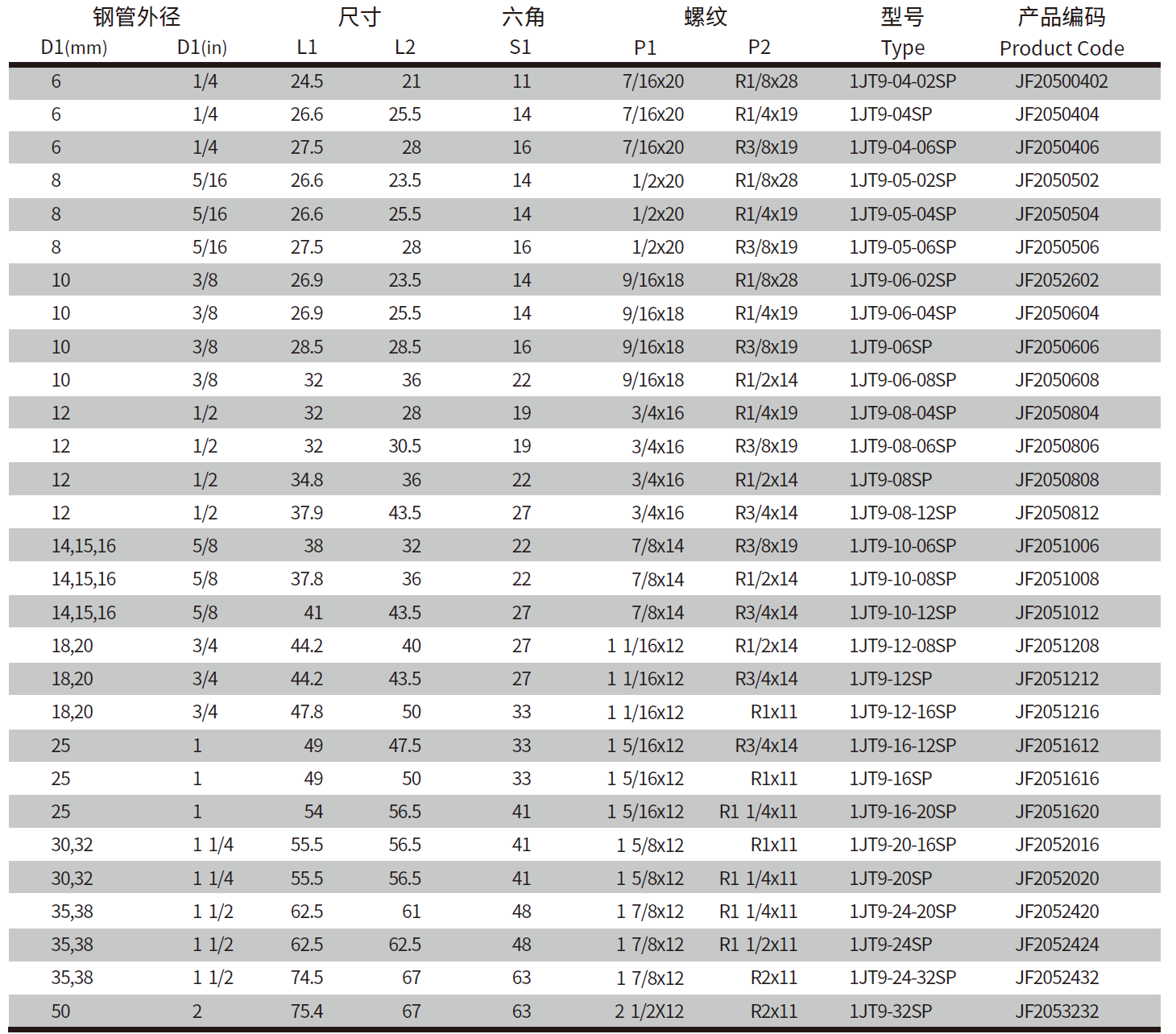

Commonly available carbon steel/galvanized surface, stainless steel                                                                                                         1JT9-SP 90° bend,American JlC external thread,74° external cone /British cone pipe external thread J connector(图1)1JT9-SP.pdf
