Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

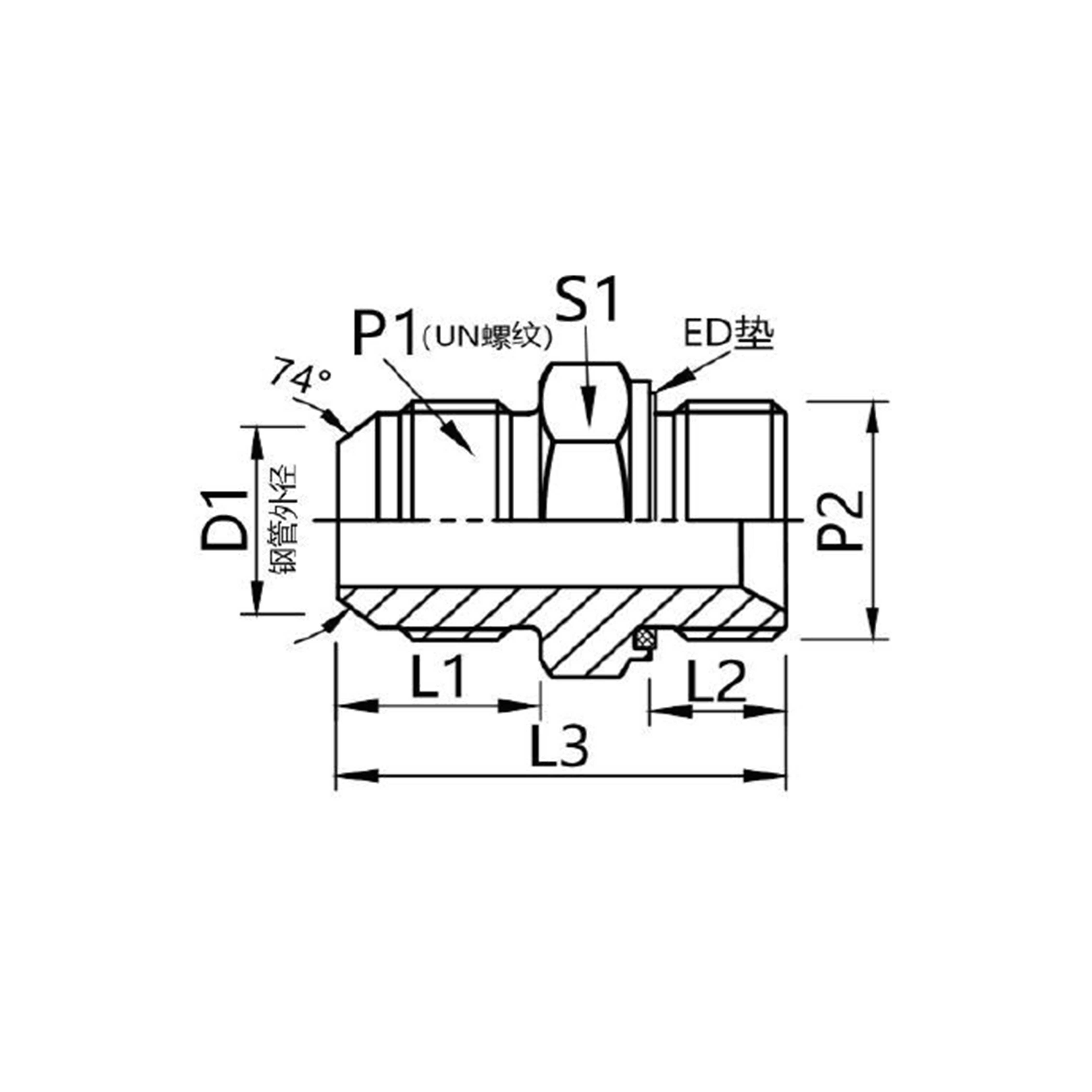

1JM-WD American JlC external thread 74°external cone /British pipe male ED pad connector

Product:

1JM-WD American JlC external thread 74°external cone /British pipe male ED pad connector

Description:

SAE J514/ISO 8434-2 standard connector
Generally available in carbon steel/galvanized surface, stainless steel
Fluororubber seals available

Consult Now

+86 0551-67291852

Product Details

SAE J514/ISO 8434-2 standard connector

Generally available in carbon steel/galvanized surface, stainless steel

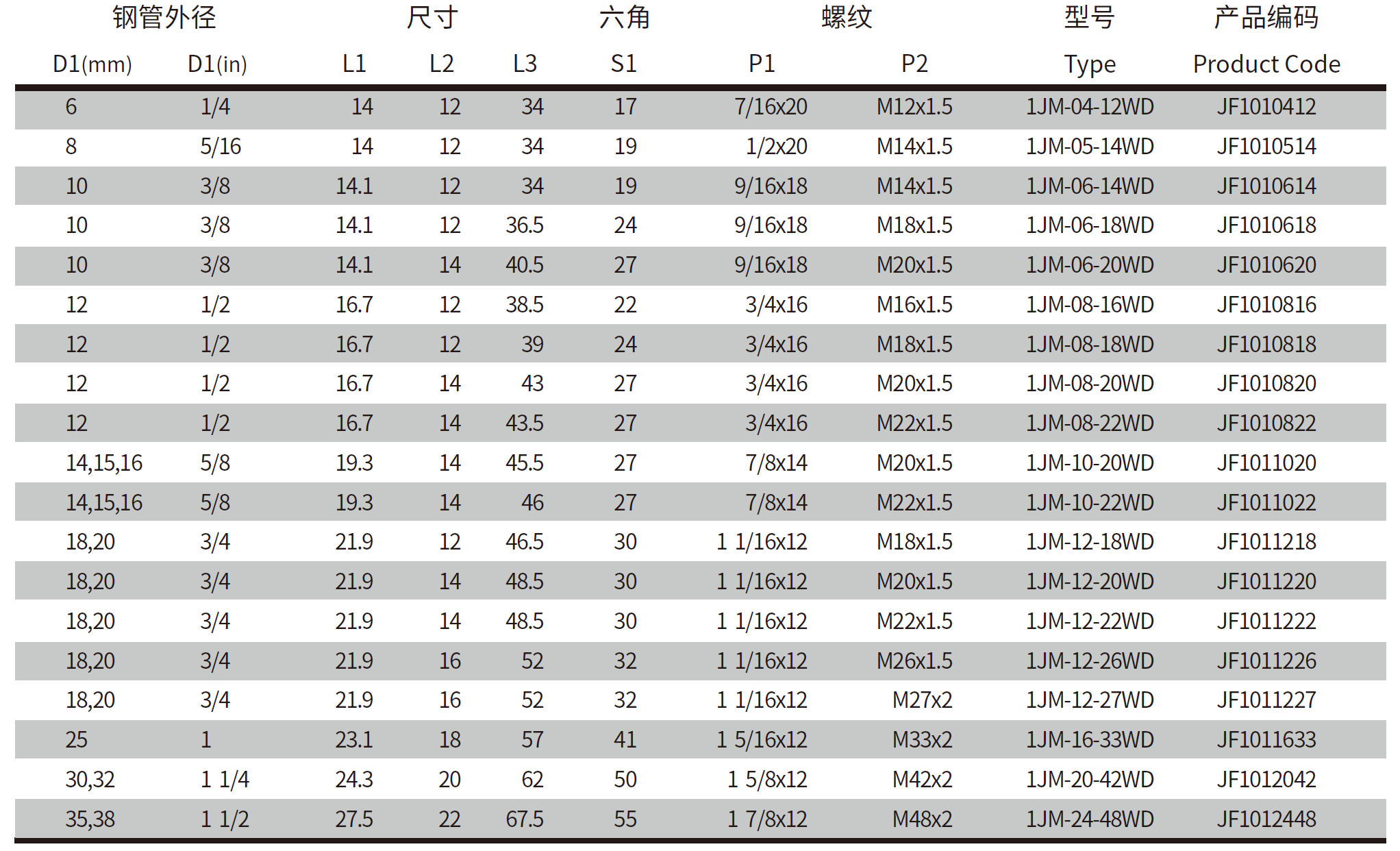

Fluororubber seals available                                                                                                                                                                     1JM-WD American JlC external thread 74°external cone /British pipe male ED pad connector(图1)1JM-WD.pdf
