Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

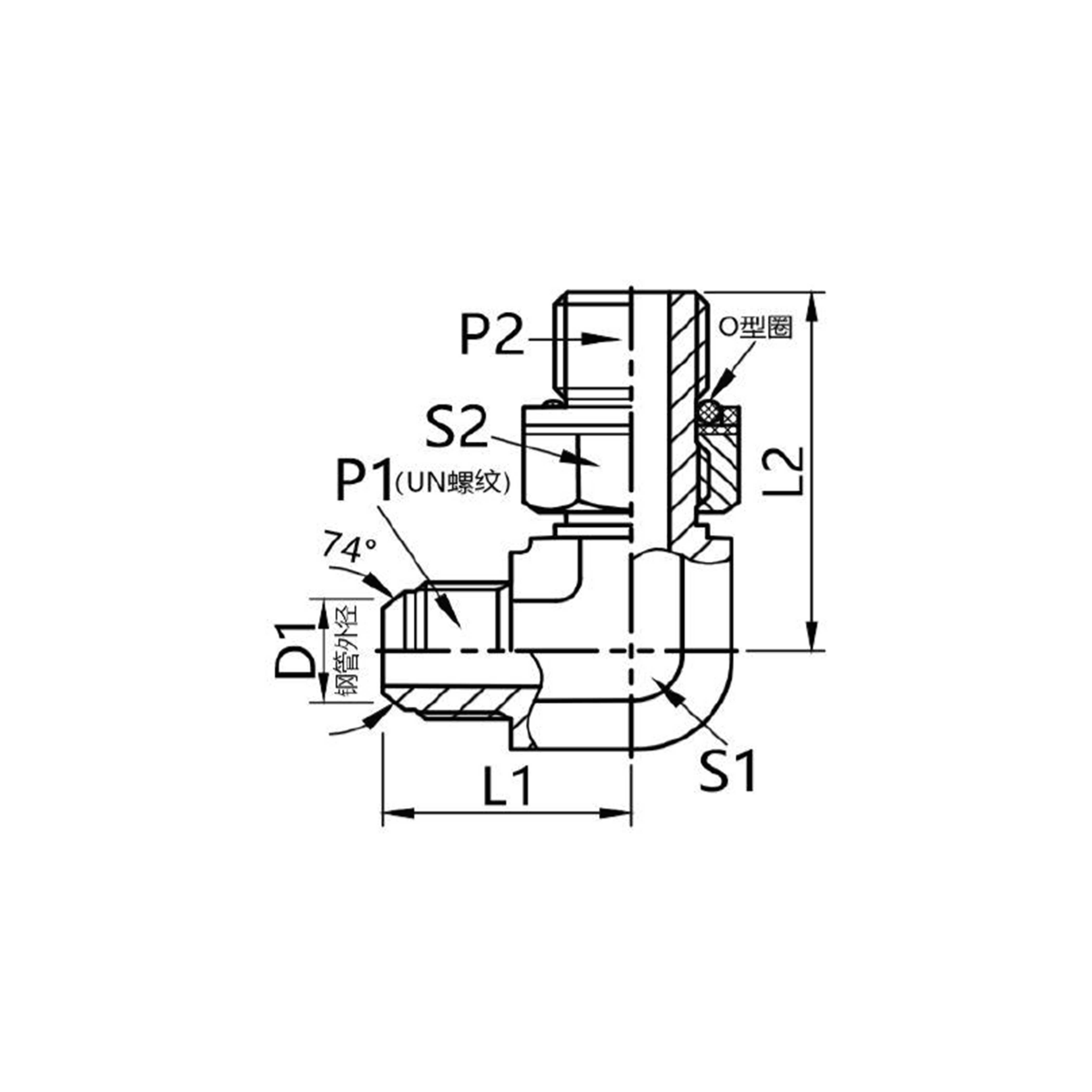

1JH9-OG American JlC external thread 74°external cone /Metric external thread o-ring 90° elbow

Product:

1JH9-OG American JlC external thread 74°external cone /Metric external thread o-ring 90° elbow

Description:

SAE J514/ISO 8434-2 standard connector
Generally available in carbon steel/galvanized surface, stainless steel
Fluororubber seals available

Consult Now

+86 0551-67291852

Product Details

SAE J514/ISO 8434-2 standard connector

Generally available in carbon steel/galvanized surface, stainless steel

Fluororubber seals available                                                                                                                                                                     1JH9-OG American JlC external thread 74°external cone /Metric external thread o-ring 90° elbow(图1)1JH9-OG.pdf
