Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

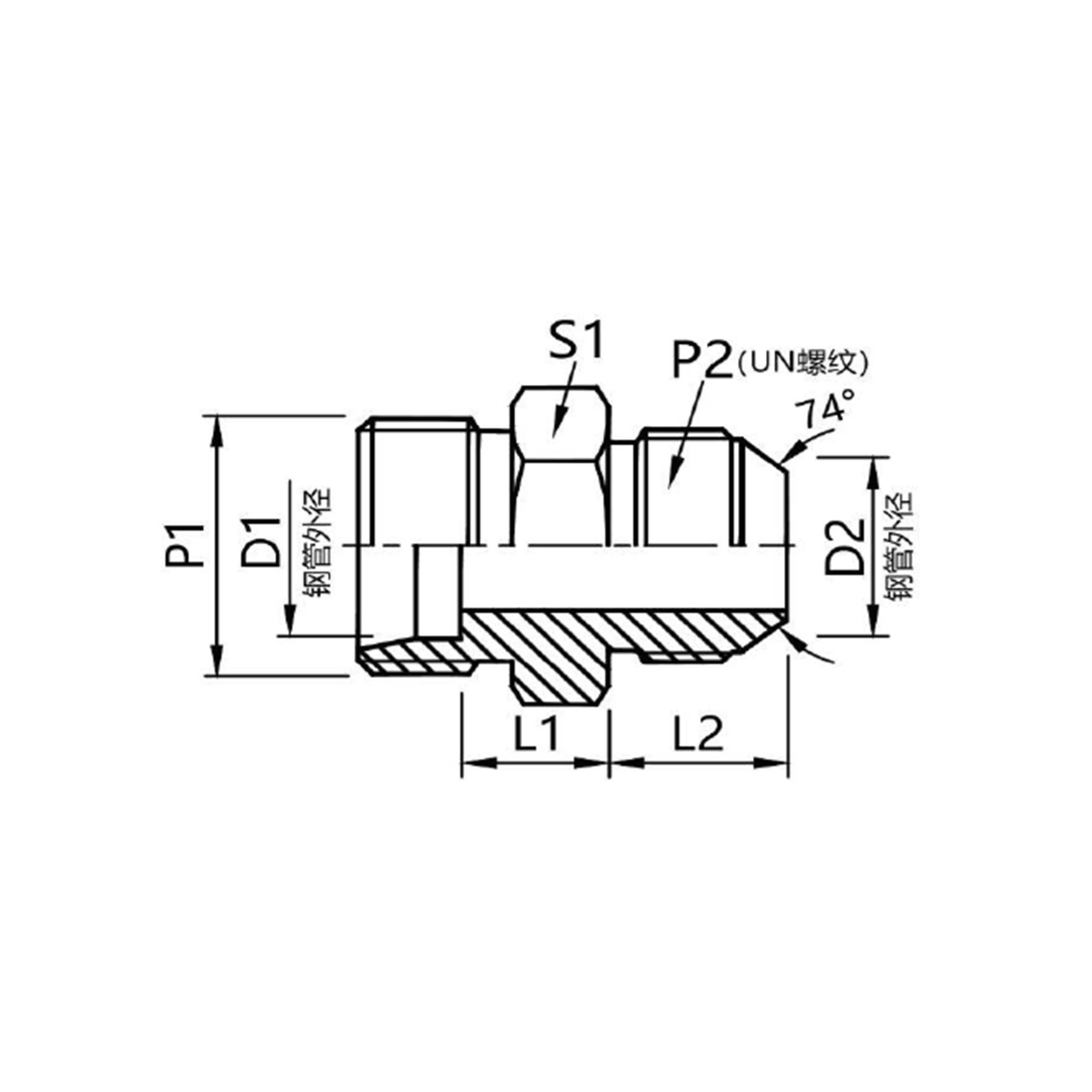

1CJ 1DJ Metric external thread 24° external cone /American Jlc external thread 74°external cone

Product:

1CJ 1DJ Metric external thread 24° external cone /American Jlc external thread 74°external cone

Description:

Complies with lS08434-1,24 ferrule connection
SAEJ514/ISO 8434-2 standard connector
Commonly available carbon steel/galvanized surface, stainless steel

Consult Now

+86 0551-67291852

Product Details

Complies with lS08434-1,24 ferrule connection

SAEJ514/ISO 8434-2 standard connector

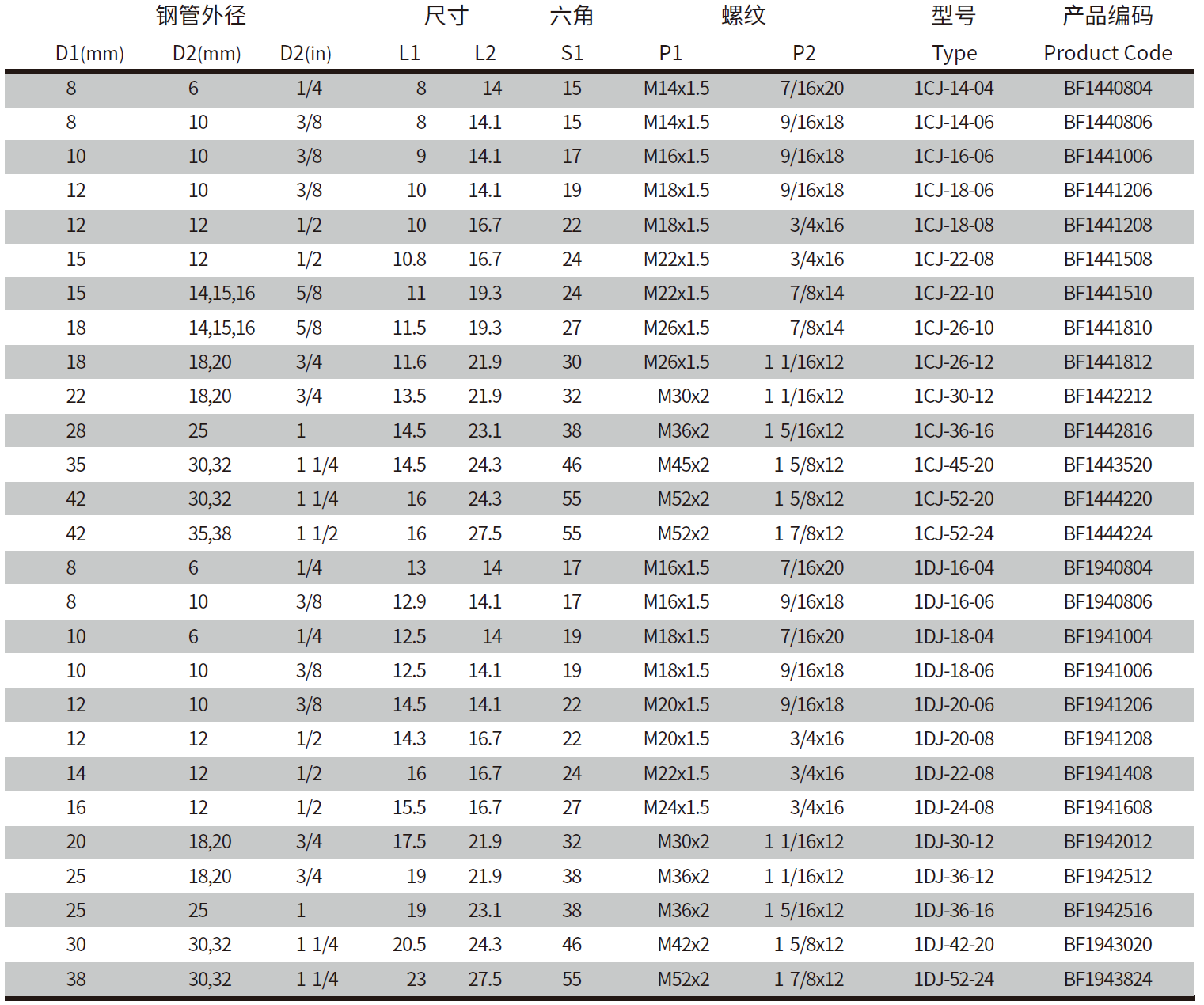

Commonly available carbon steel/galvanized surface, stainless steel                                                                                                    1CJ 1DJ Metric external thread 24° external cone /American Jlc external thread 74°external cone(图1)1CJ-1DJ.pdf
