Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

2JC 2JD American Jlc external thread 74°external cone /Metric external thread 24°internal cone

Product:

2JC 2JD American Jlc external thread 74°external cone /Metric external thread 24°internal cone

Description:

Complies with lSO8434-1,24° ferrule connection
SAE J514/ISO 8434-2 standard connector
Commonly available carbon steel/galvanized surface, stainless steel
Fluororubber seals available

Consult Now

+86 0551-67291852

Product Details

Complies with lSO8434-1,24° ferrule connection

SAE J514/ISO 8434-2 standard connector

Commonly available carbon steel/galvanized surface, stainless steel

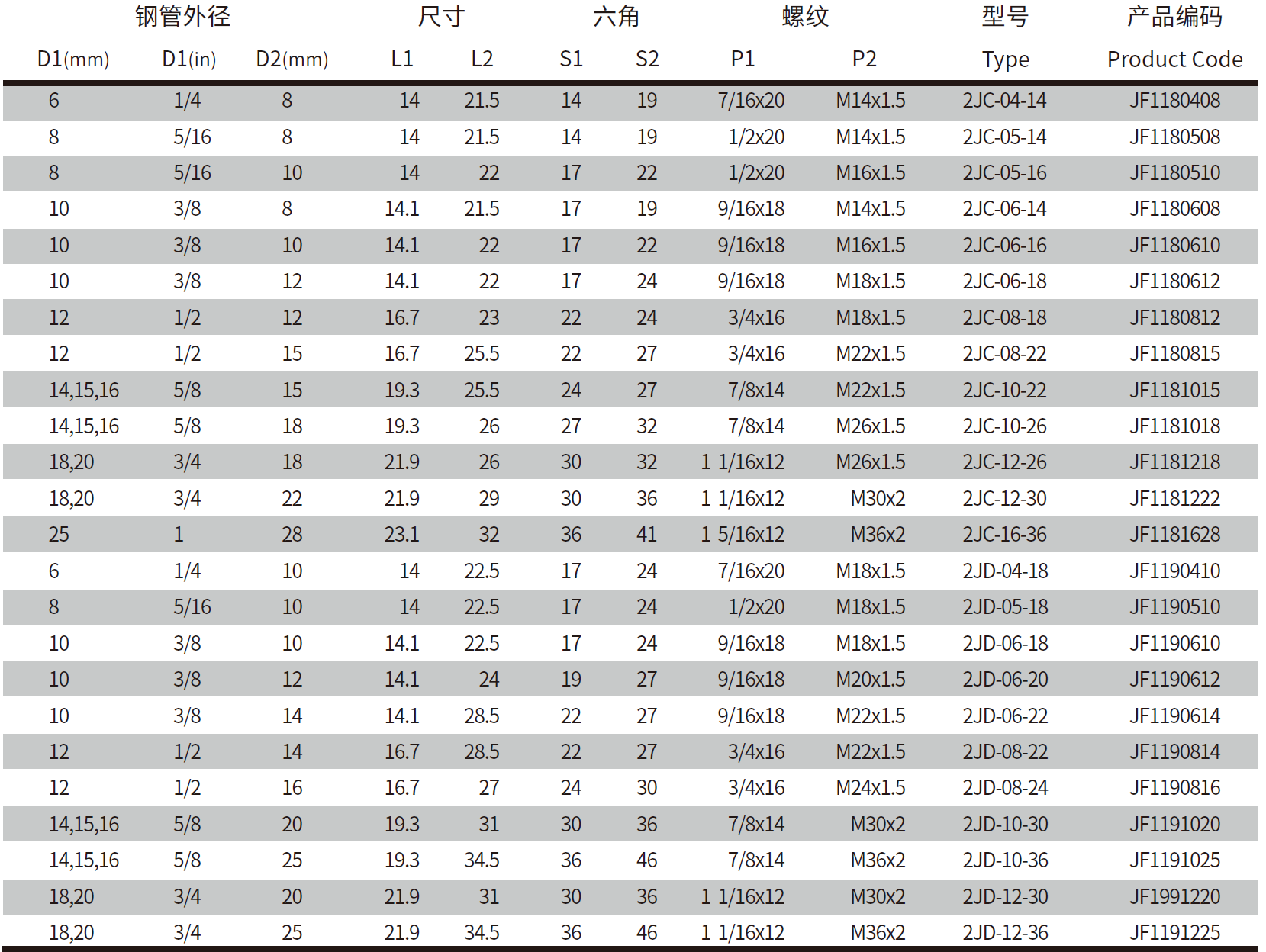

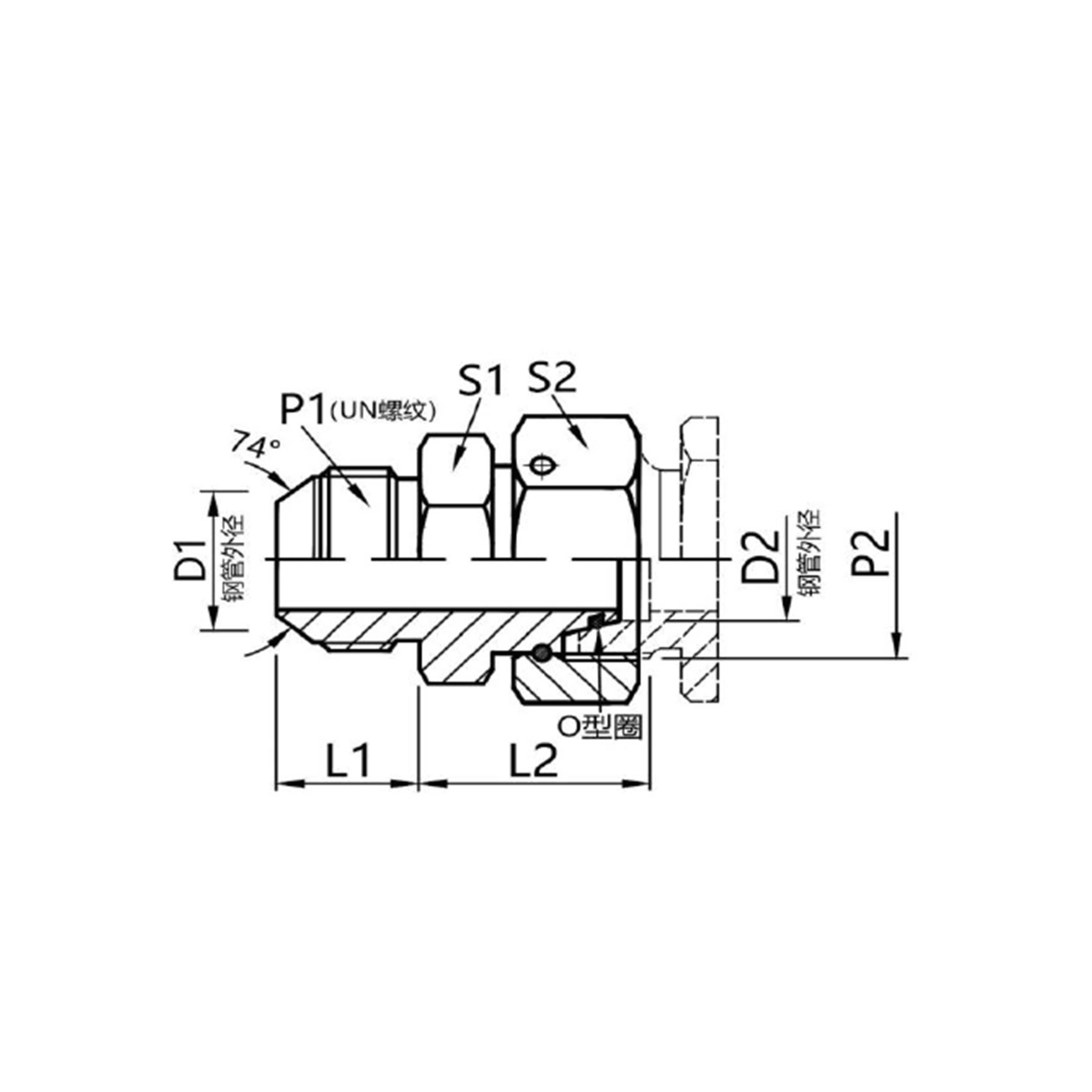

Fluororubber seals available                                                                                                                                                                       2JC 2JD American Jlc external thread 74°external cone /Metric external thread 24°internal cone(图1)2JC-2JD.pdf
