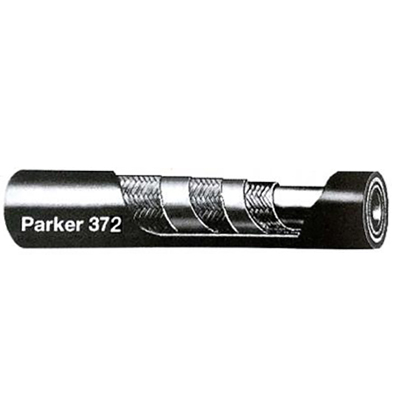

Three layers of high-strength steel wire braid reinforcement, synthetic rubber inner layer, oil-resistant, wear-resistant and weather-resistant black synthetic rubber outer layer.
+86 0551-67291852
Hose structure: three layers of high-strength steel wire braided reinforcement layer, synthetic rubber inner layer, oil-resistant, wear-resistant and weather-resistant black synthetic rubber outer layer.
Application: high-pressure conditions, for petroleum-based hydraulic oil, water glycol, emulsion, hot oil, grease, lubricant, crude oil and fuel oil, air, water.
Needle puncture is required for pressure gas above 17 bar.
Adapter: Parker non-peeling one-piece connector
Working pressure: 4SP pressure level
Adapter: Crimp type 70 series
Temperature range: -40℃~+100℃
Air: up to +70℃, water: up to +85℃
