Two layers of fiber braided reinforcement, inner and outer layers of synthetic rubber
+86 0551-67291852

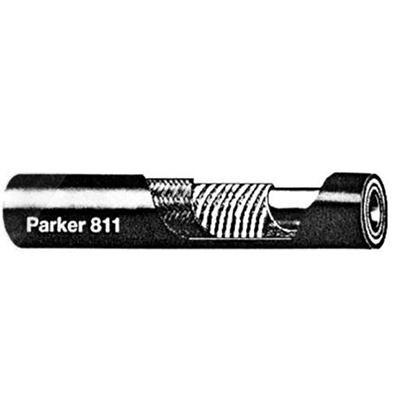

Hose structure: two layers of fiber braided reinforcement, synthetic rubber inner and outer layers.
Application: used for system oil suction and return lines. Suitable for water, air, petroleum, lubricants, and other mineral oils. Needle puncture is required for pressure gas above 17 bar.
Adapter: Parker plug-in connector
SAE 100 R4
Adapter: Crimp type 43 series, clamp type 88 series
Temperature range: -40℃~+100℃
Air: up to +70℃, water: up to +85℃
