A high aramid fiber braided layer, a polyester thermoplastic elastomer inner layer, and a highly wear-resistant polyurethane outer layer.
+86 0551-67291852

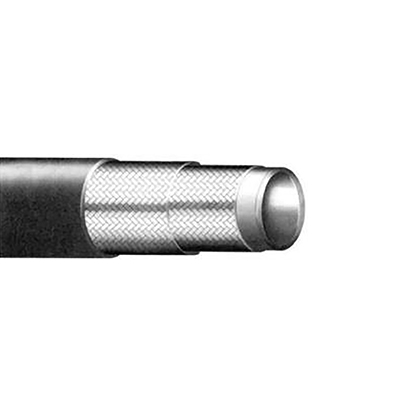

Hose structure: one layer of high aramid fiber braided layer, polyester thermoplastic elastomer inner layer, high wear-resistant polyurethane outer layer.
Application: general high-pressure hydraulic system, conveying hydraulic oil and gas, suitable for lifting forklifts, booms, agricultural equipment and hydraulic transmission equipment.
Adapter: two-piece braided crimping connector
SAE 100R8
Temperature range: -40℃~+80℃
13EU.pdf
