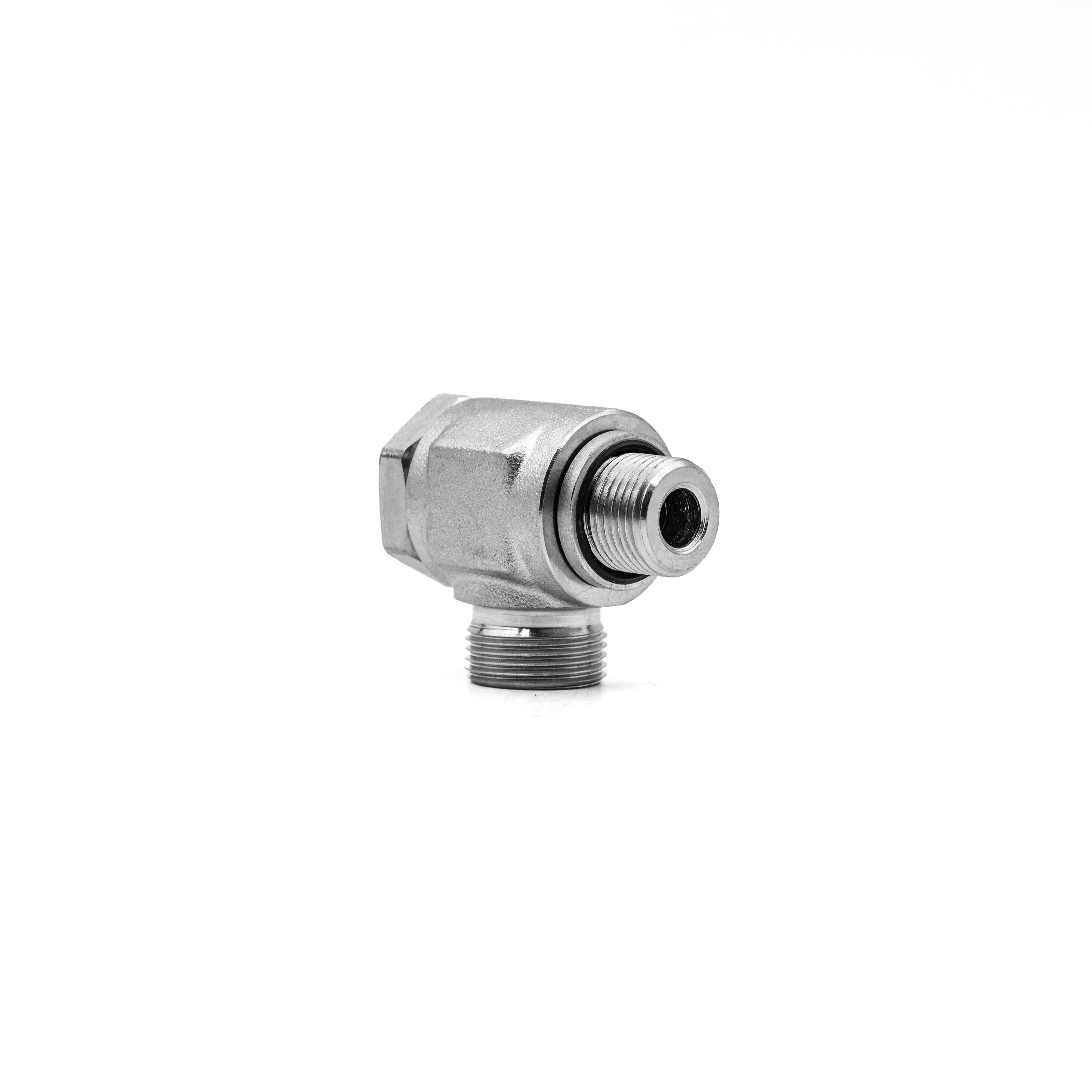

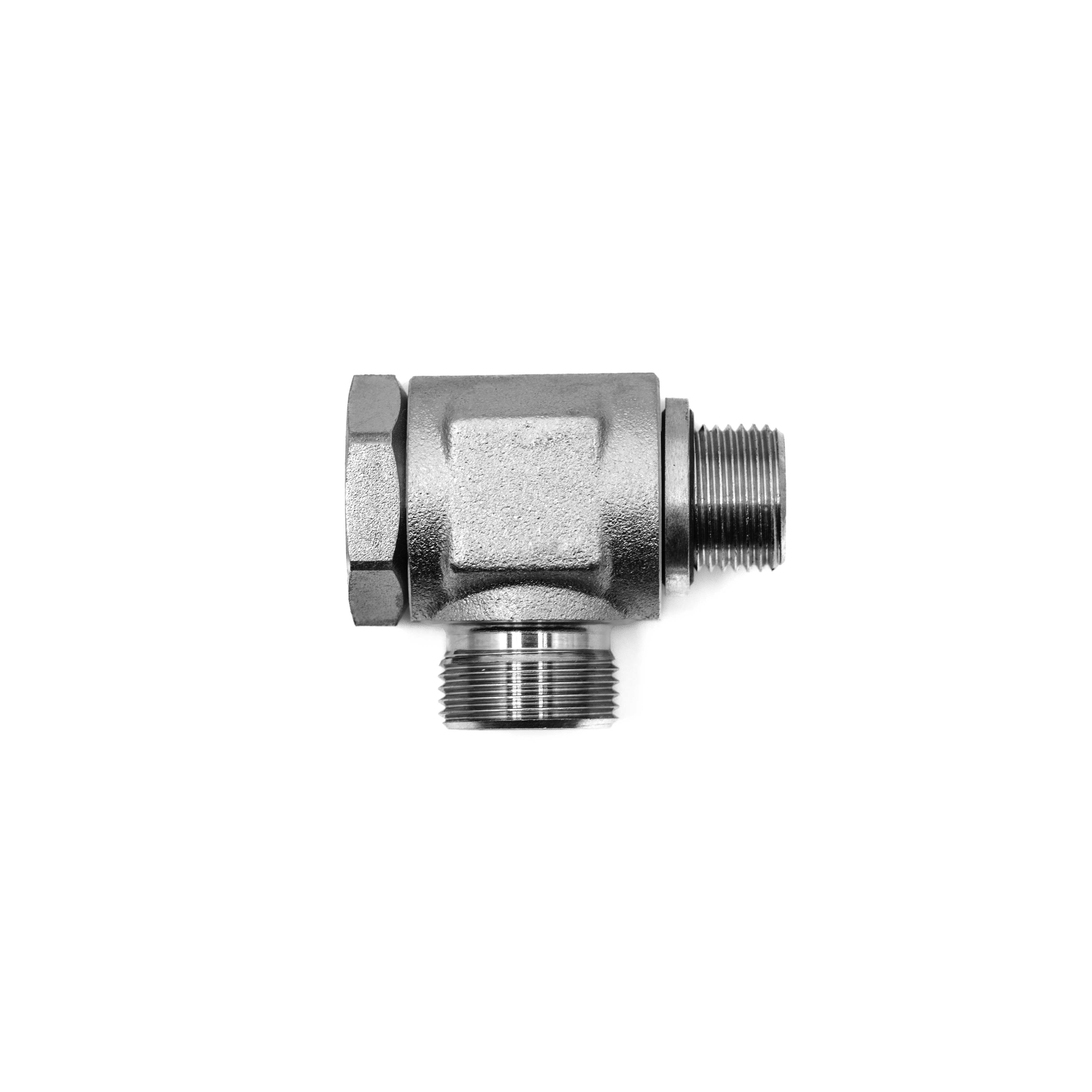

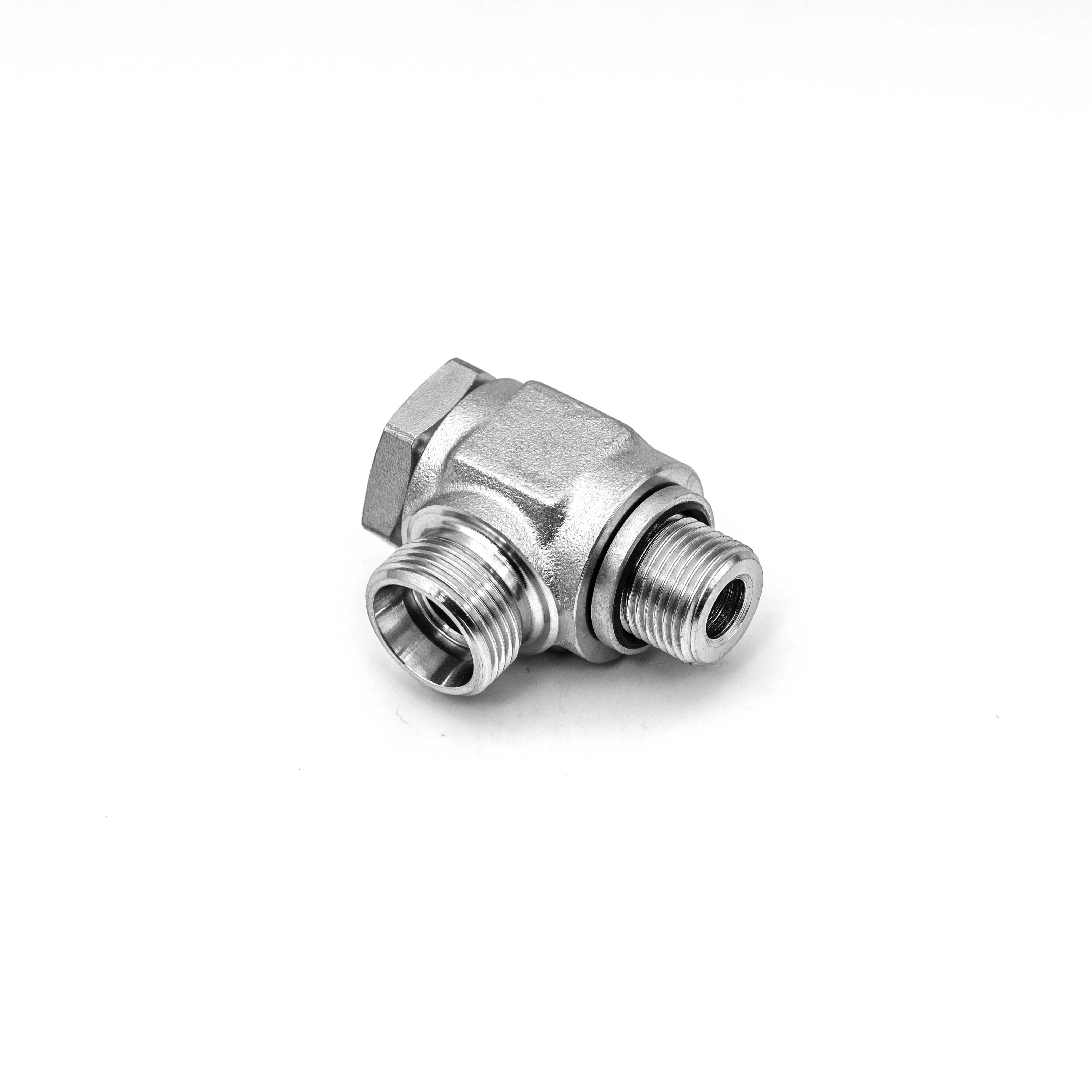

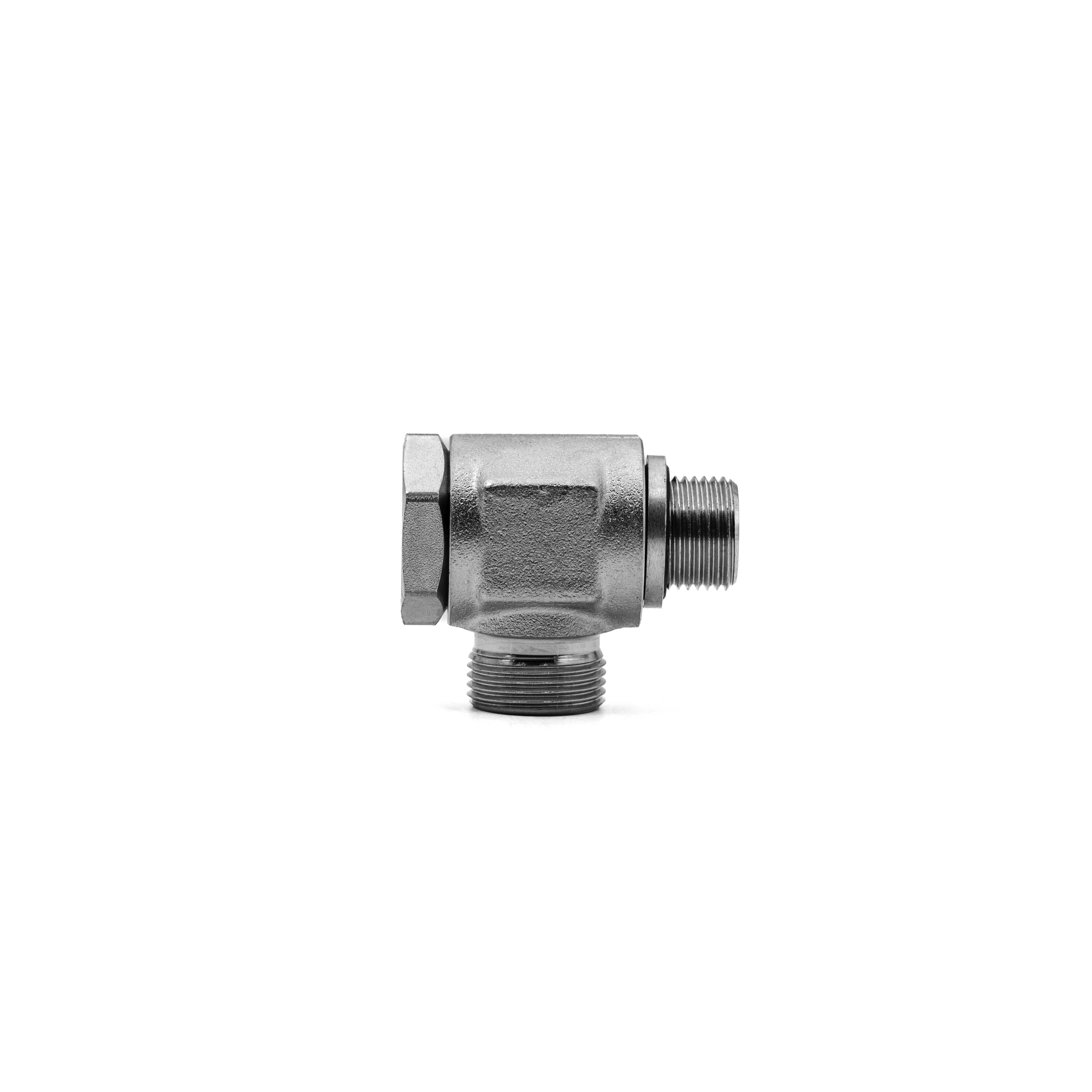

WH-M-KDS High pressure articulated connector

Product:

WH-M-KDS High pressure articulated connector

Description:

Comply with lSO8434-1, 24 ferrule connection
Generally supplied carbon steel/galvanized surface, stainless steel

Consult Now

+86 0551-67291852

Product Details

Comply with lSO8434-1, 24 ferrule connection

Generally supplied carbon steel/galvanized surface, stainless steel WH-M-KDS High pressure articulated connector(图1) WH-M-KDS.pdf
