Home > Products > Pipe Fittings > Hose Fittings > One-piece hose connector

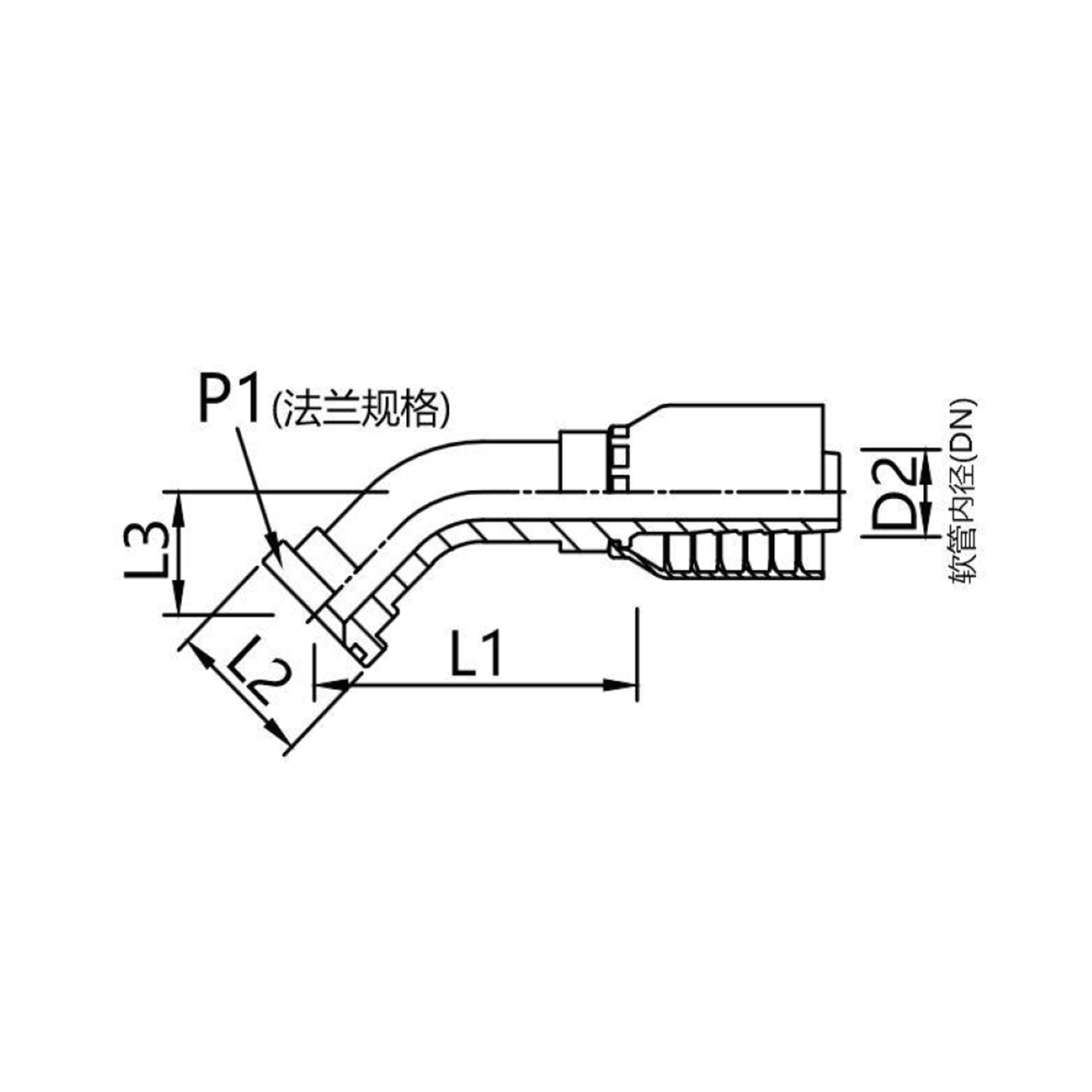

87341Y,87342Y(LIGHT) 87641Y,87642Y(HEAY) One-piece 45°elbow SAE flange connector

Product:

87341Y,87342Y(LIGHT) 87641Y,87642Y(HEAY) One-piece 45°elbow SAE flange connector

Description:

ISO 12151-3, SAE J516
Generally available carbon steel/galvanized surface
87341Y for braided hose, 87342Y for spiral hose
87641Y for braided hose, 87642Y for spiral hose

Consult Now

+86 0551-67291852

Product Details

ISO 12151-3, SAE J516

Generally available carbon steel/galvanized surface

87341Y for braided hose, 87342Y for spiral hose

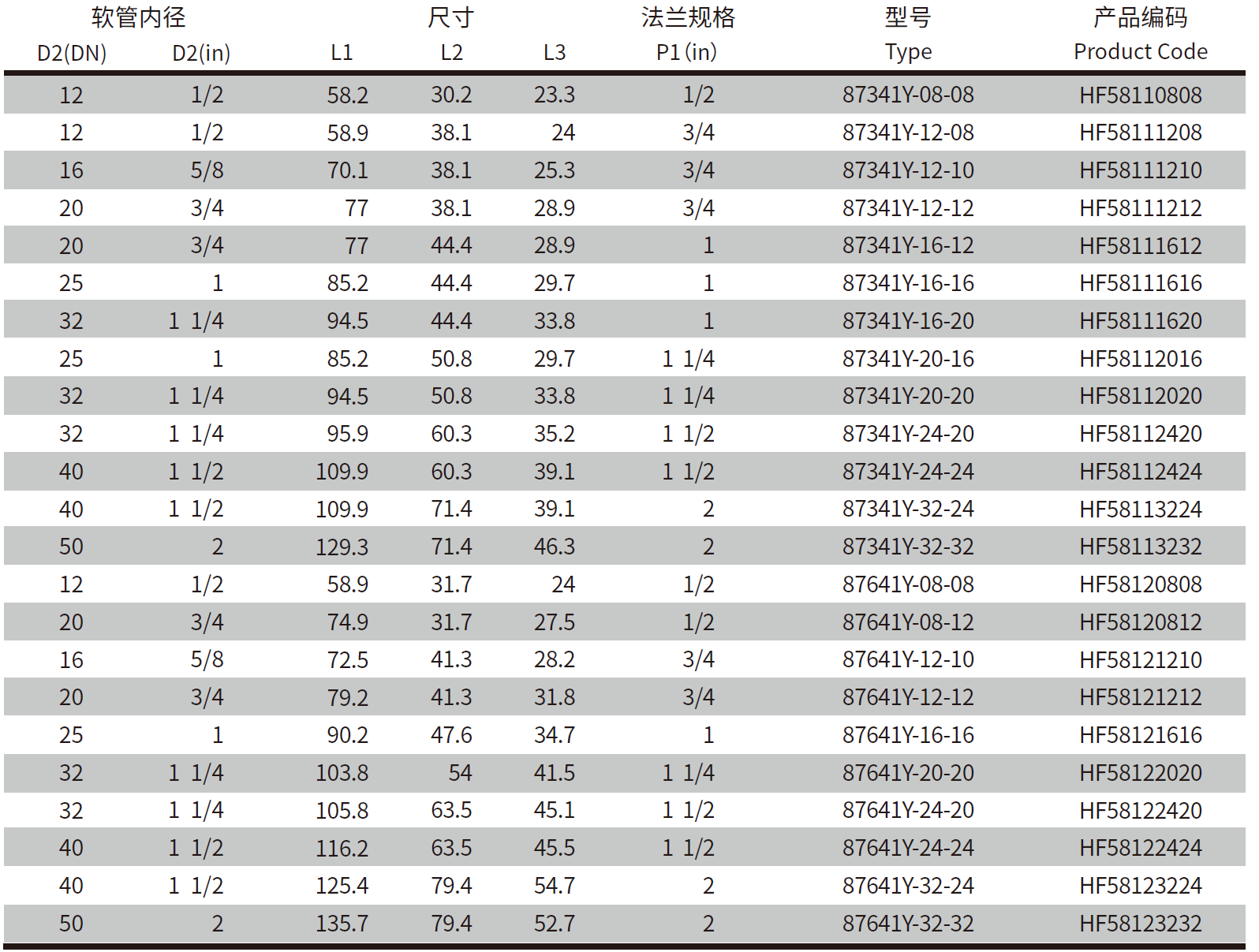

87641Y for braided hose, 87642Y for spiral hose                                                                                                                                         87341Y,87342Y(LIGHT) 87641Y,87642Y(HEAY) One-piece 45°elbow SAE flange connector(图1)87341Y.pdf
