Home > Products > Pipe Fittings > Pneumatic quick-change connector > Pneumatic quick-change connector

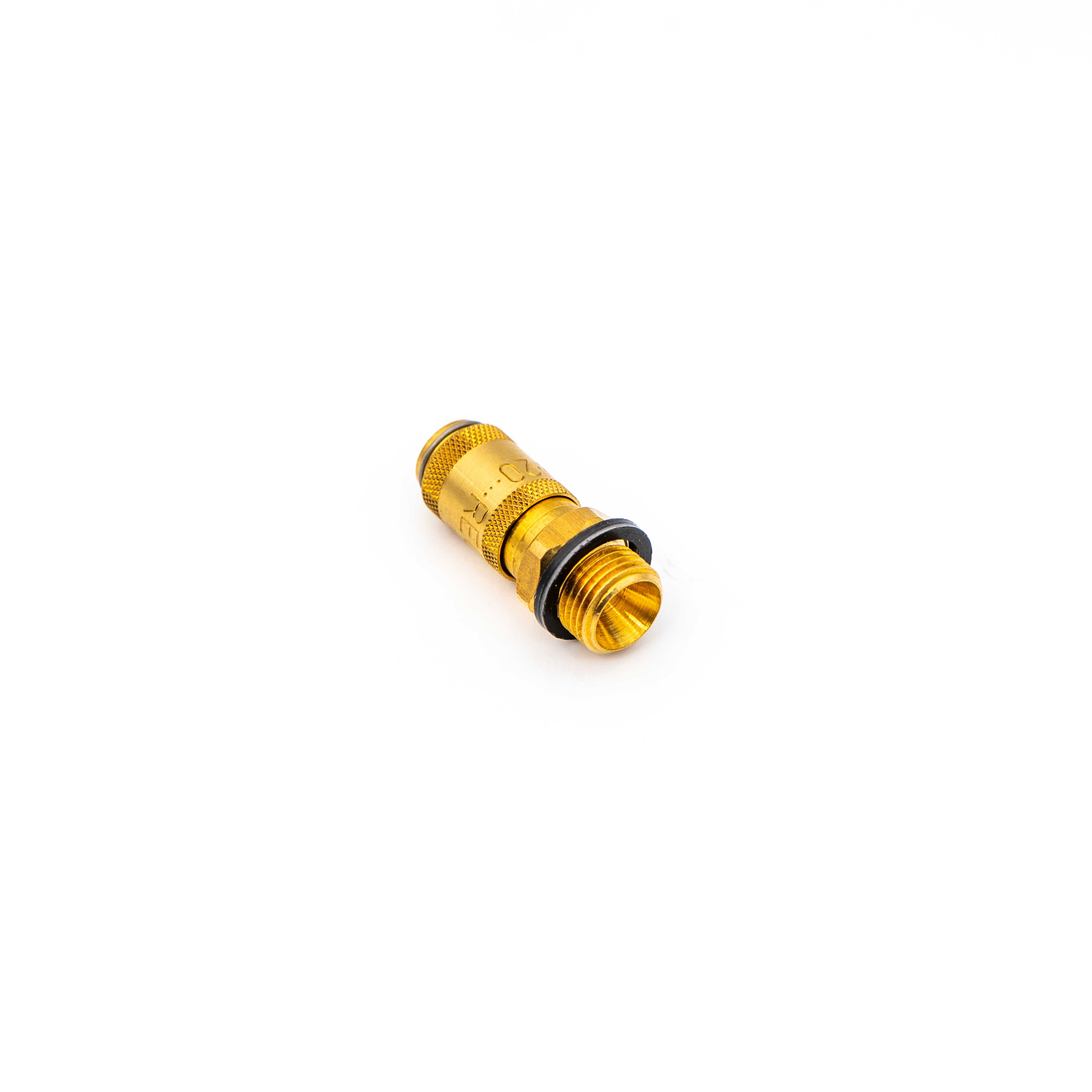

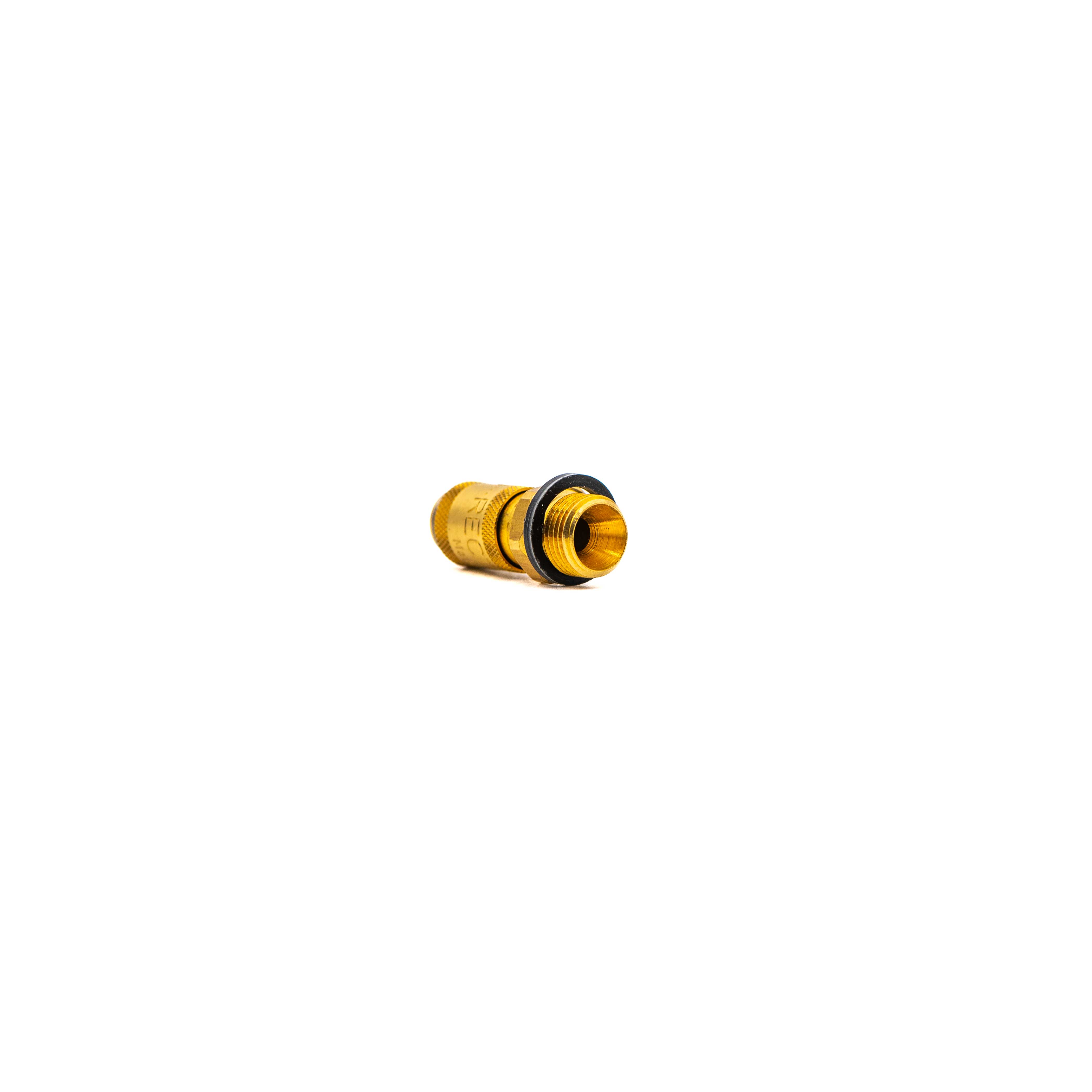

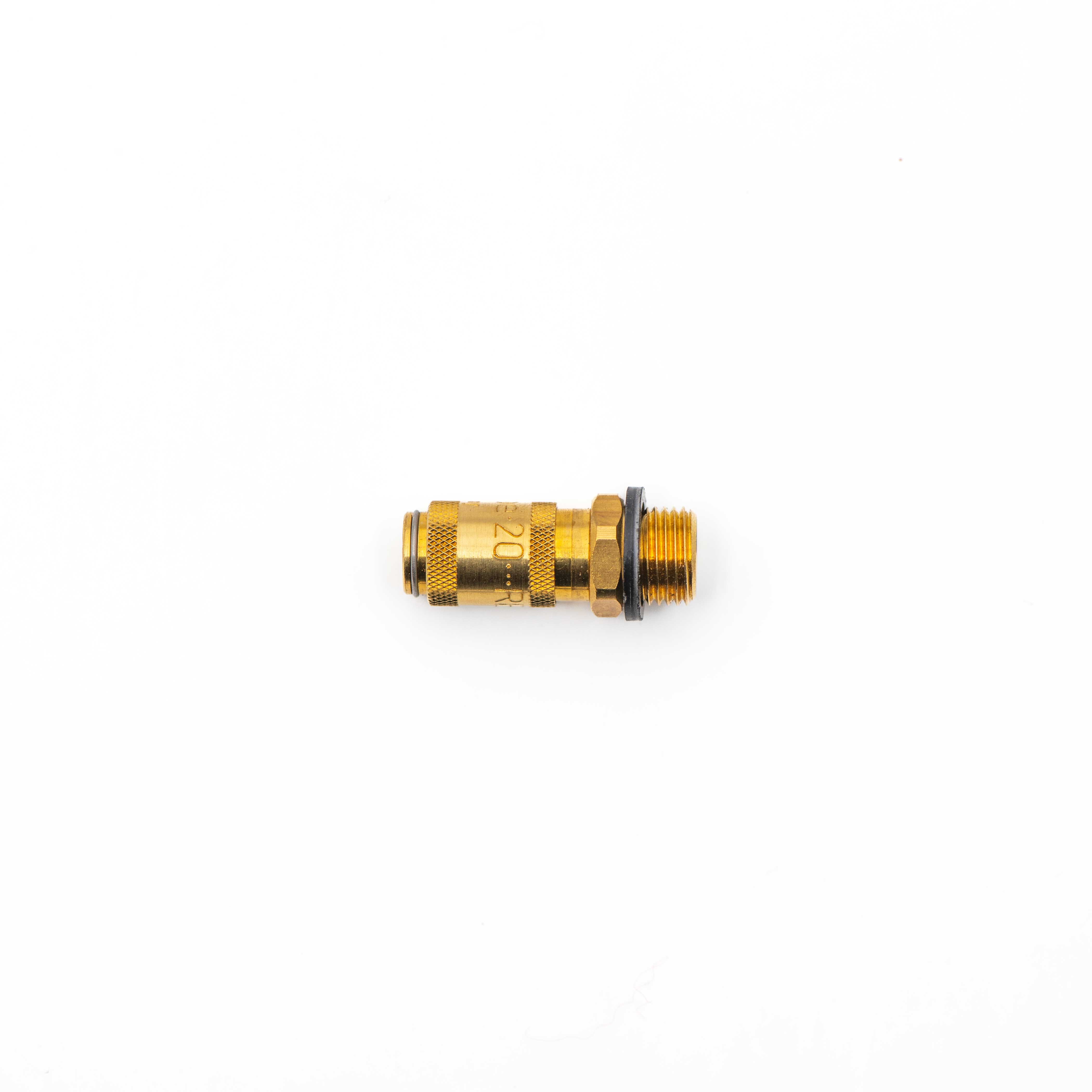

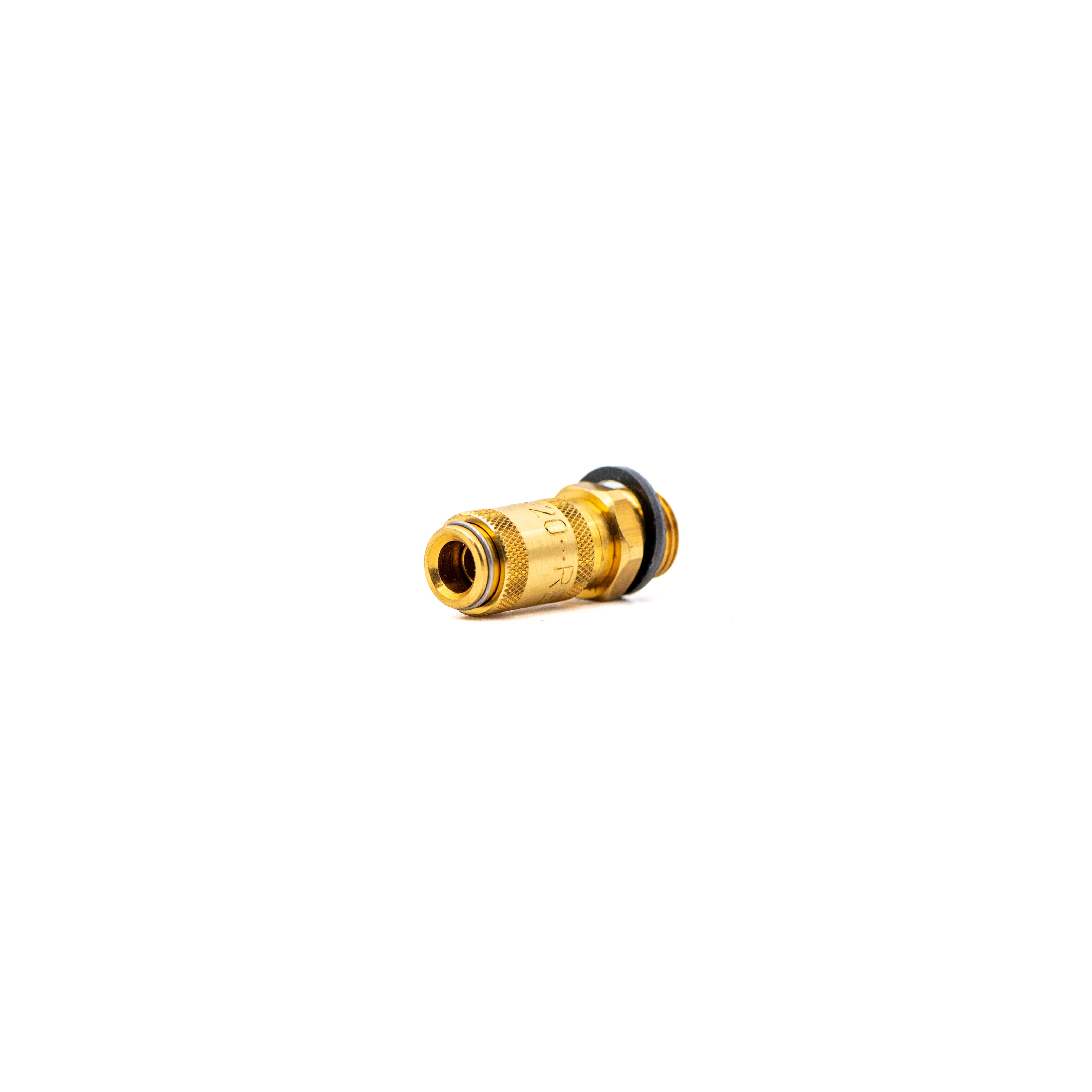

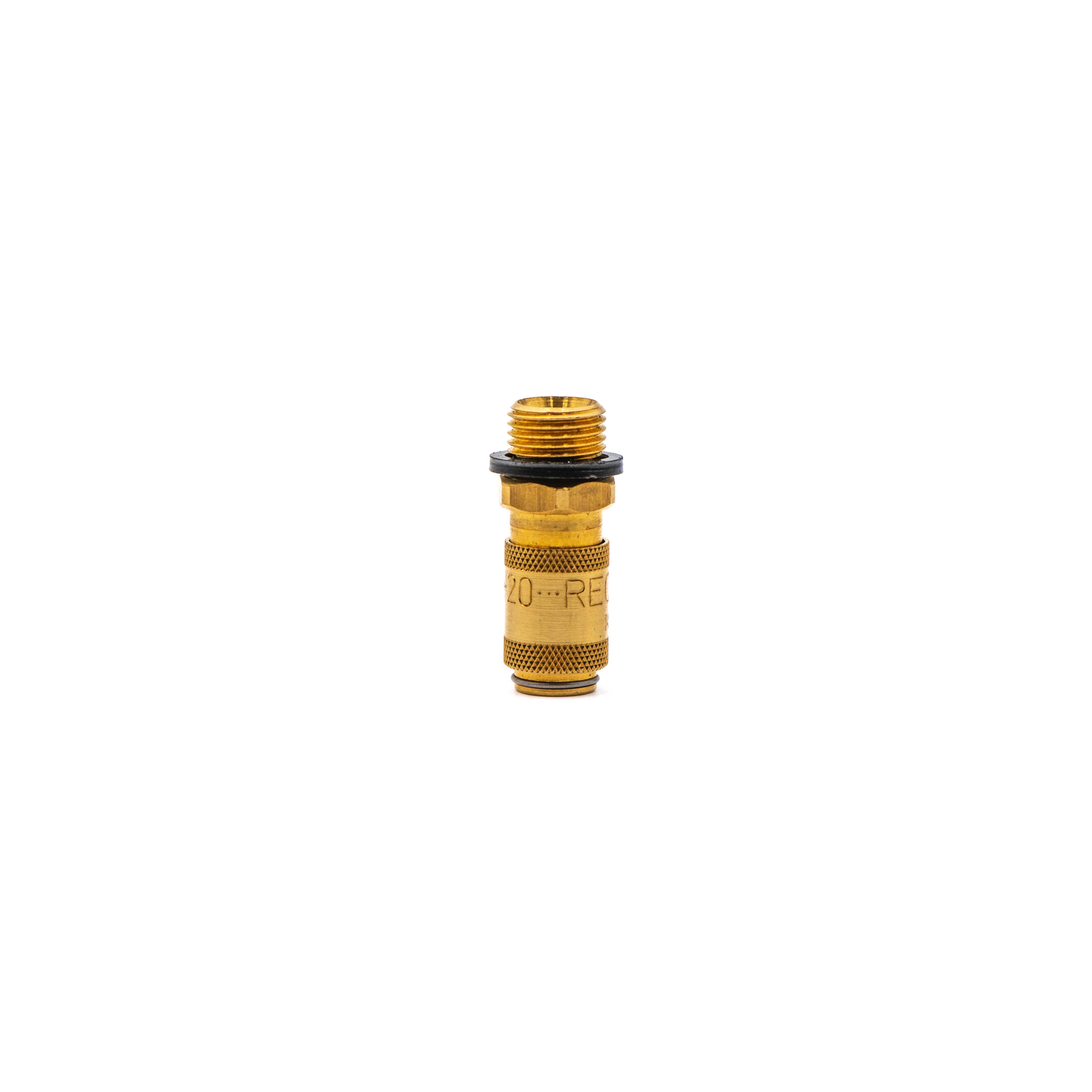

20KA AW Pneumatic quick change-female

Product:

20KA AW Pneumatic quick change-female

Description:

Orifice 2,7-6mm
Commonly used in small pneumatic, medical, chemical and
pharmaceutical industries
Working pressure PB=35bar
Applicable temperature:
-20'C~+100'C(NBR)
-40°C~+120C(EPDM)
-15°C~+200°C(FKM)

Consult Now

+86 0551-67291852

Product Details

Orifice 2,7-6mm

Commonly used in small pneumatic, medical, chemical and

pharmaceutical industries

Working pressure PB=35bar

Applicable temperature:

-20'C~+100'C(NBR)

-40°C~+120C(EPDM)

-15°C~+200°C(FKM)                                                                                                                                                                             20KA AW Pneumatic quick change-female(图1)20KA AW.pdf
