Home > Products > Pipe Fittings > Pneumatic quick-change connector > Pneumatic quick-change connector

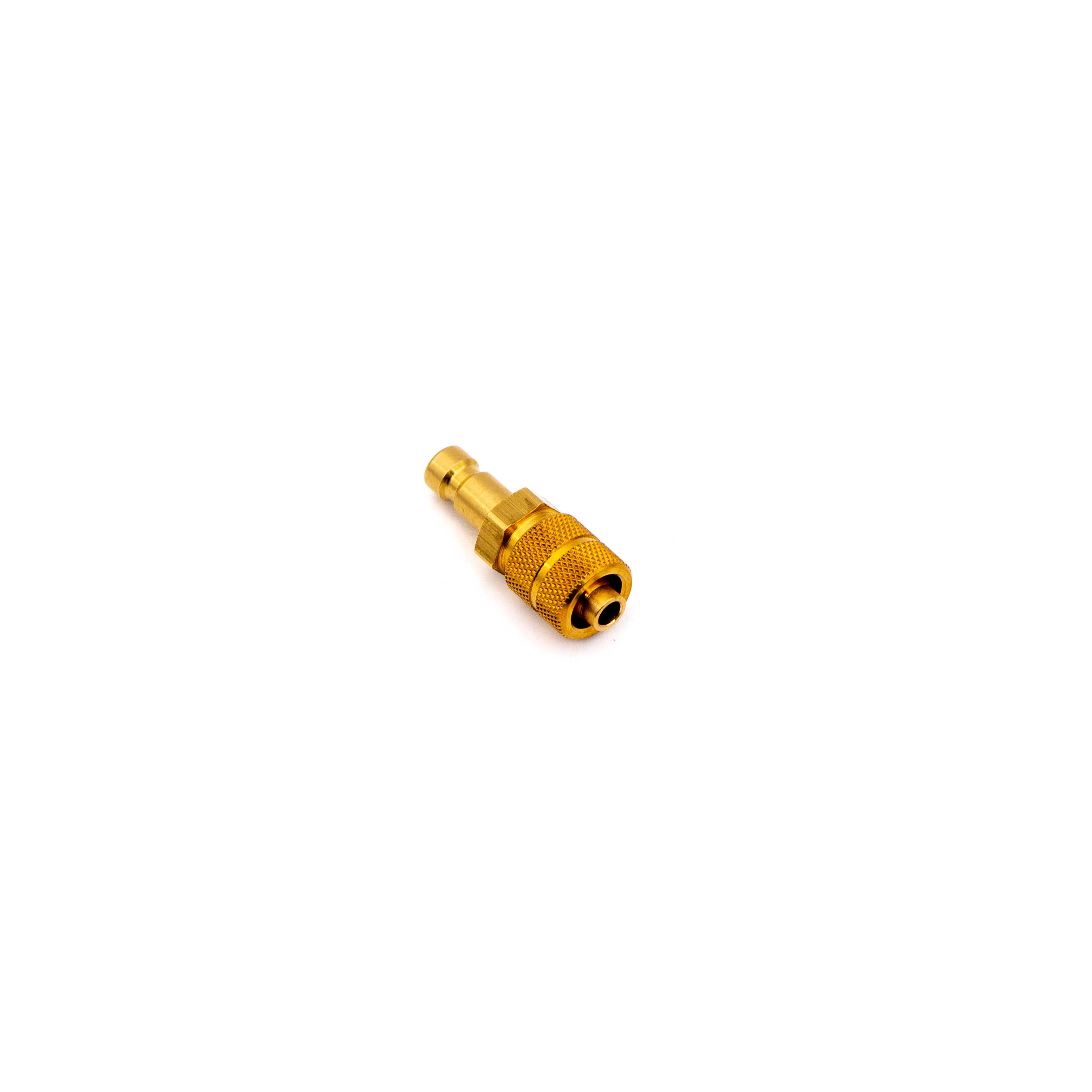

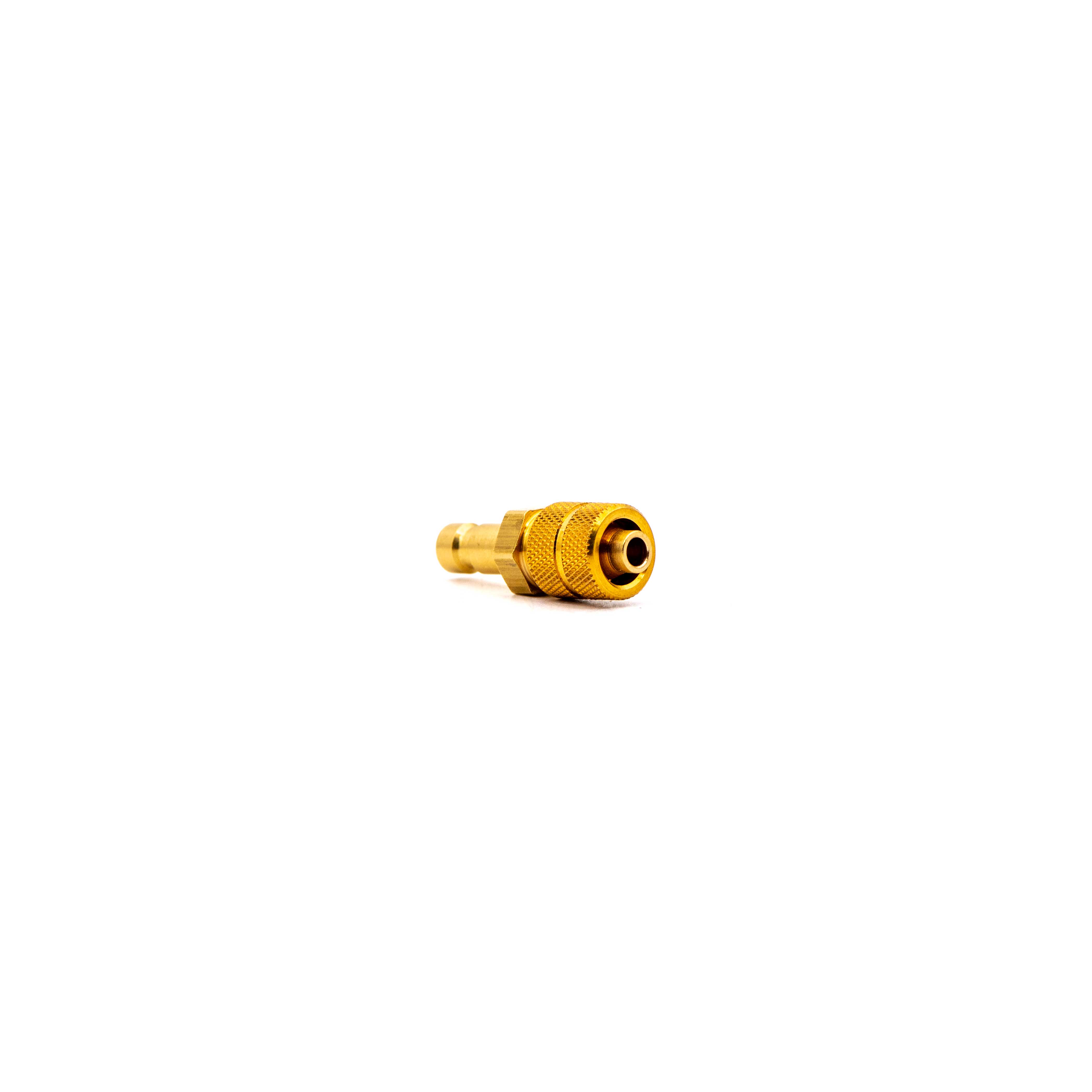

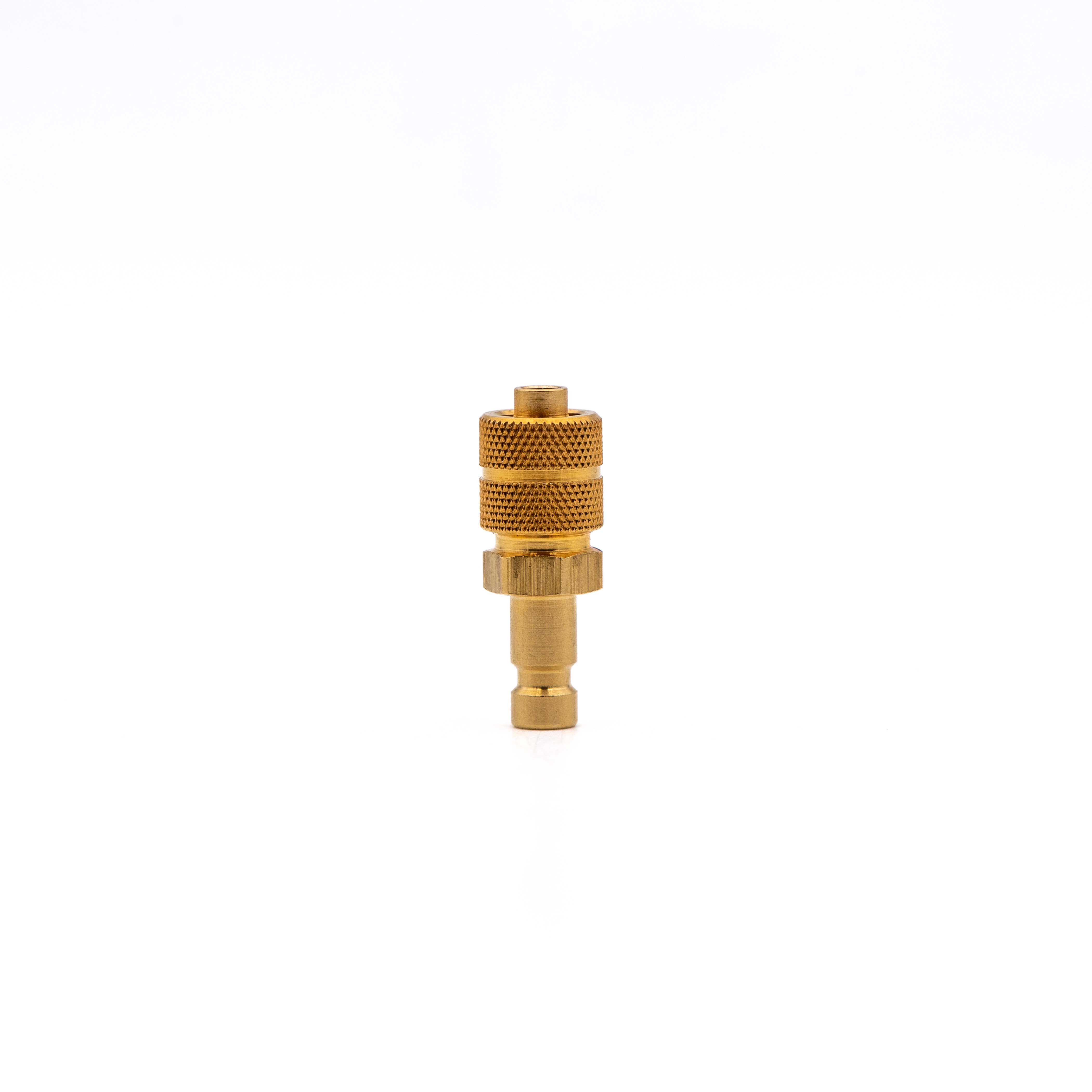

20SF KO Pneumatic quick change-male

Product:

20SF KO Pneumatic quick change-male

Description:

Orifice 2,7=6mm2
Commonly used in small pneumatic, medical, chemical and
pharmaceuticalindustries
Working pressure PB=35bar
Applicable temperature:
-20°C~+100°C (NBR)
-40°C~+120°C(EPDM)
-15°C~+200°C(FKM)

Consult Now

+86 0551-67291852

Product Details

Orifice 2,7=6mm2

Commonly used in small pneumatic, medical, chemical and

pharmaceuticalindustries

Working pressure PB=35bar

Applicable temperature:

-20°C~+100°C (NBR)

-40°C~+120°C(EPDM)

-15°C~+200°C(FKM)                                                                                                                                                                        20SF KO Pneumatic quick change-male(图1)20SF KO.pdf
