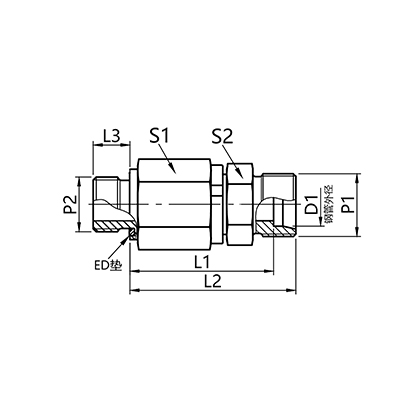

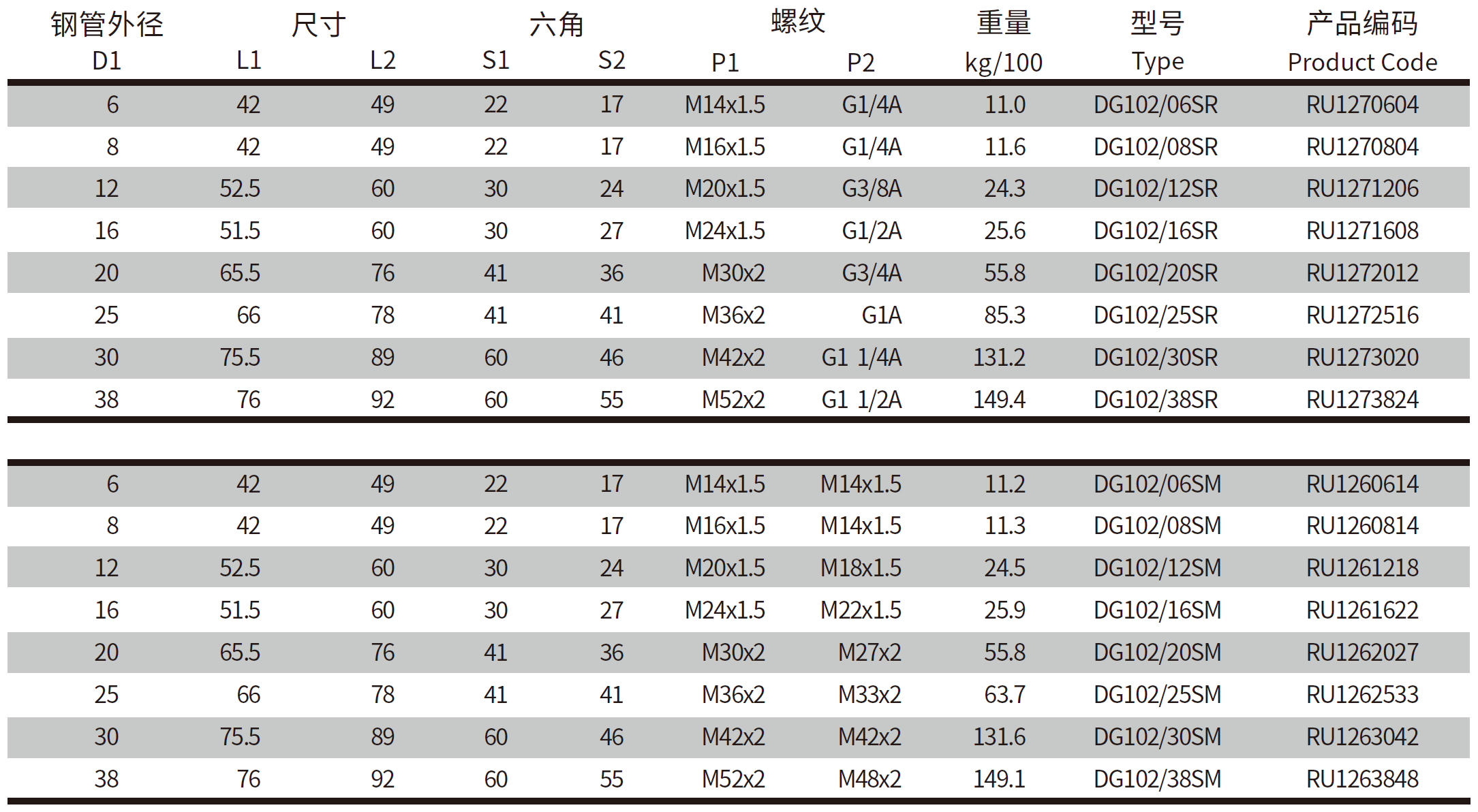

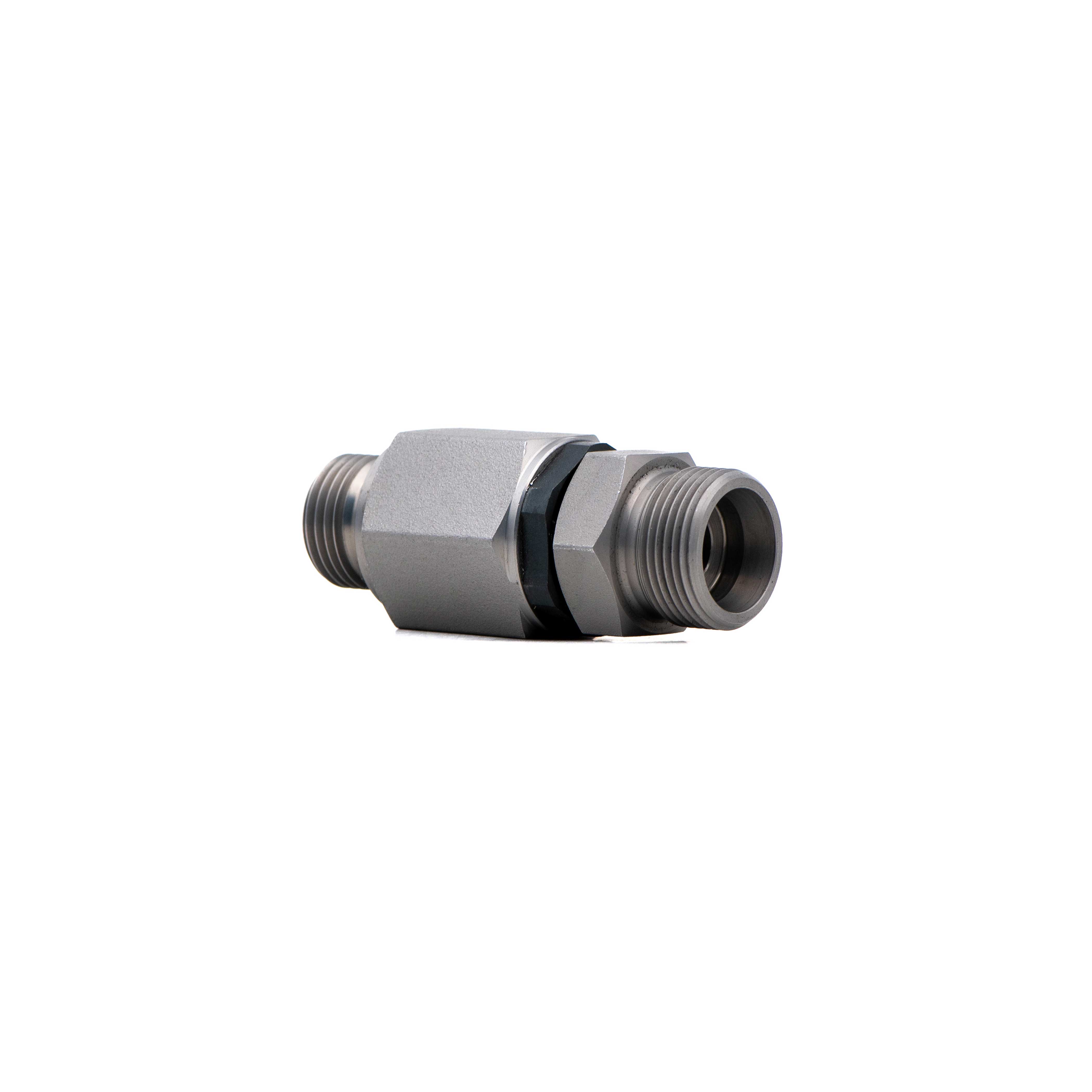

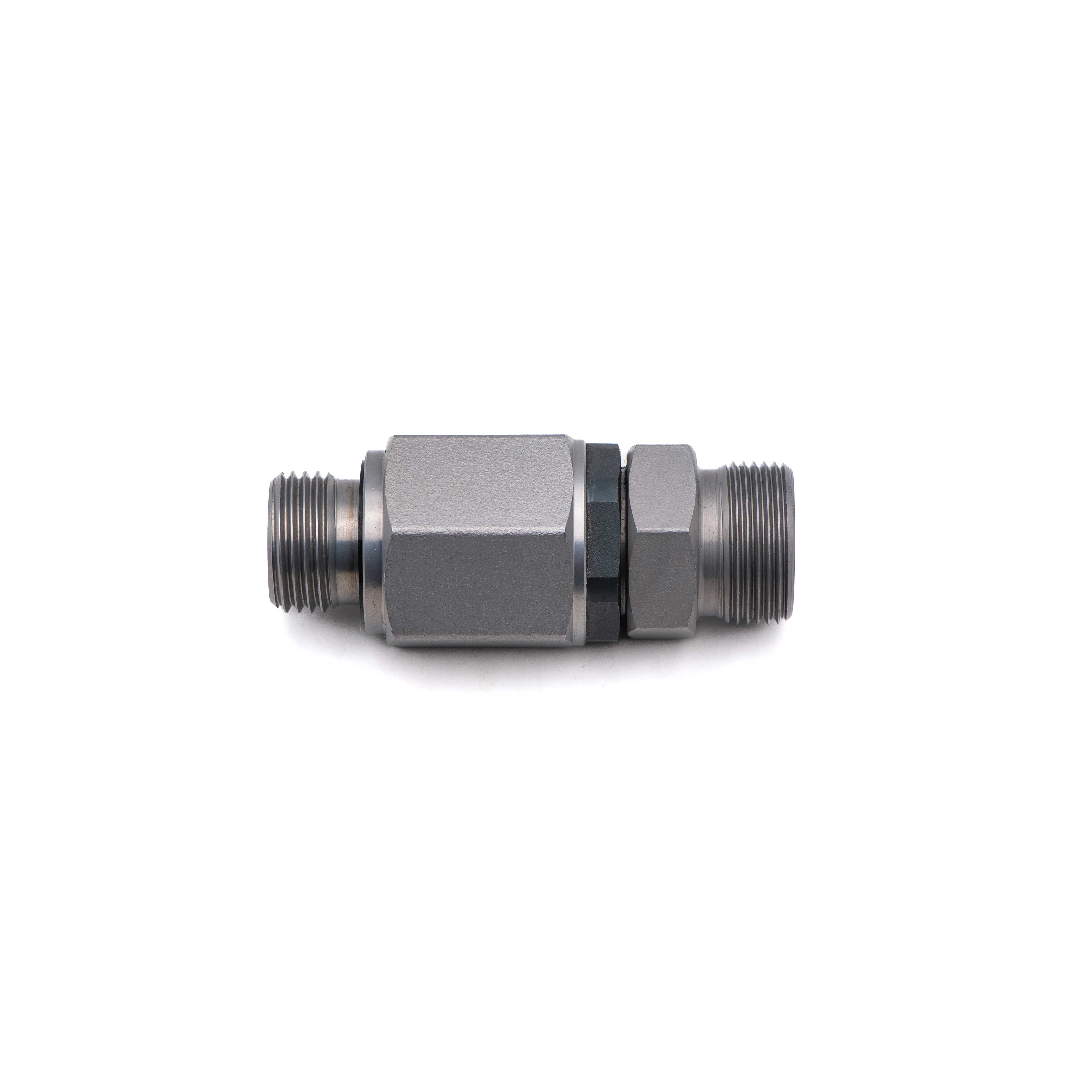

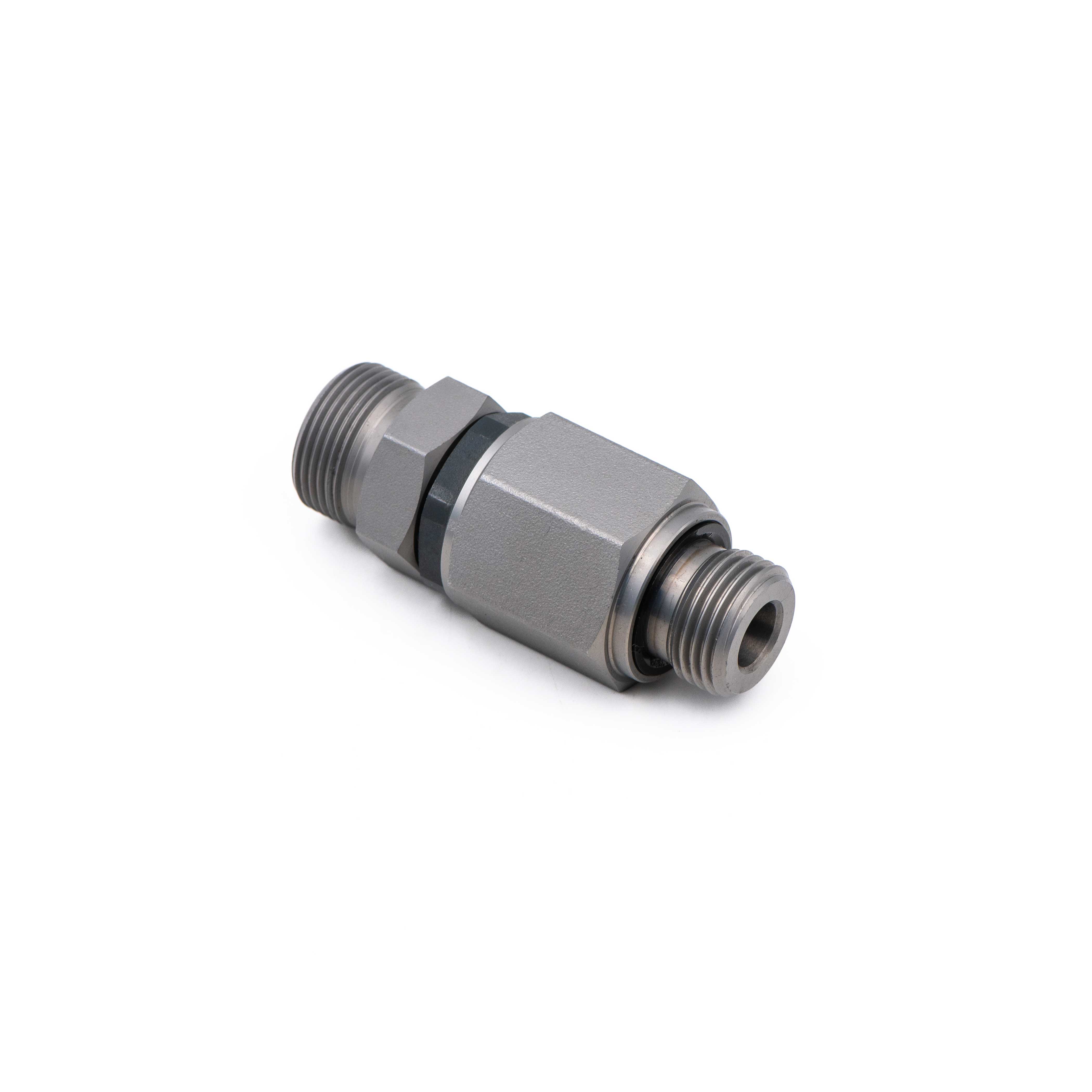

DG 102 End Through Ball Bearing swivel connector

Product:

DG 102 End Through Ball Bearing swivel connector

Description:

Complies with lSO8434-1, 24 ferrule connection
Commonly available carbon steel/galvanized surface, stainless steel
Fluororubber sealing ring available

Consult Now

+86 0551-67291852

Product Details

Complies with lSO8434-1, 24 ferrule connection

Commonly available carbon steel/galvanized surface, stainless steel

Fluororubber sealing ring available DG 102 End Through Ball Bearing swivel connector(图1) DG 102.pdf
