DG 108 Right Angle Bulkhead Ball Bearing Rotary connector

Product:

DG 108 Right Angle Bulkhead Ball Bearing Rotary connector

Description:

Comply with lSO8434-1,24° ferrule connection
Generally supplied carbon steel/galvanized surface, stainless steel

Consult Now

+86 0551-67291852

Product Details

Comply with lSO8434-1,24° ferrule connection

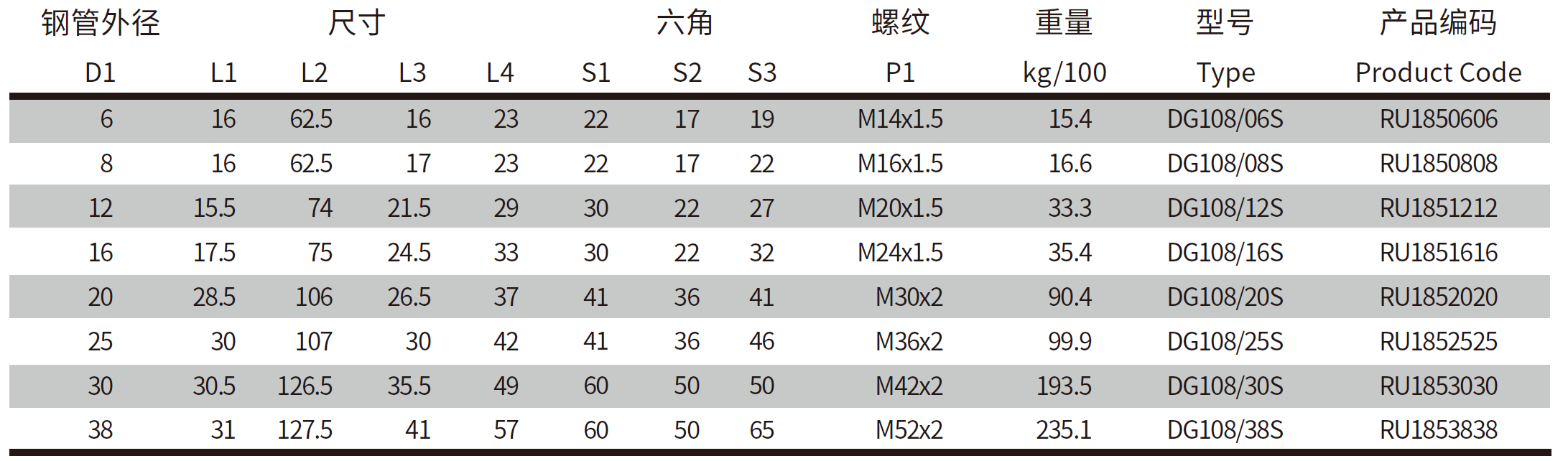

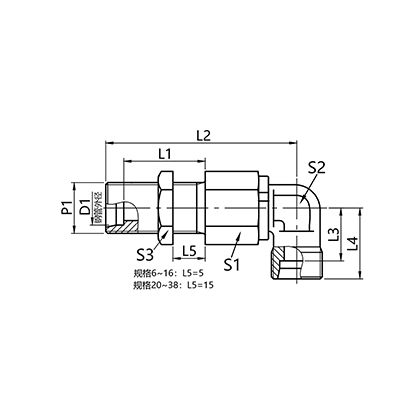

Generally supplied carbon steel/galvanized surface, stainless steel DG 108 Right Angle Bulkhead Ball Bearing Rotary connector(图1) DG108.pdf
