Home > Products > Test Connector Instrument > Sensor > Sensors

PR110 Pressure Sensors

Product:

PR110 Pressure Sensors

Description:

Working principle: Piezoresistive effect
Pressure type: relative pressure
Output signal: 4~20mA
Electrical connection: 5-pin plug, M16x0.75
Mechanical connection: G1/4A, 1SO 228
Seal material: DlN3689 standard seal, fluororubber
Protection grade: lP67
Casing material: non-corrosive high-strength steel
Membrane material: non-corrosive high-strength stee
Tightening torque: 40Nm(±5Nm)
Net weight:~85g

Consult Now

+86 0551-67291852

Product Details

Working principle: Piezoresistive effect

Pressure type: relative pressure

Output signal: 4~20mA

Electrical connection: 5-pin plug, M16x0.75

Mechanical connection: G1/4A, 1SO 228

Seal material: DlN3689 standard seal, fluororubber

Protection grade: lP67

Casing material: non-corrosive high-strength steel

Membrane material: non-corrosive high-strength stee

Tightening torque: 40Nm(±5Nm)

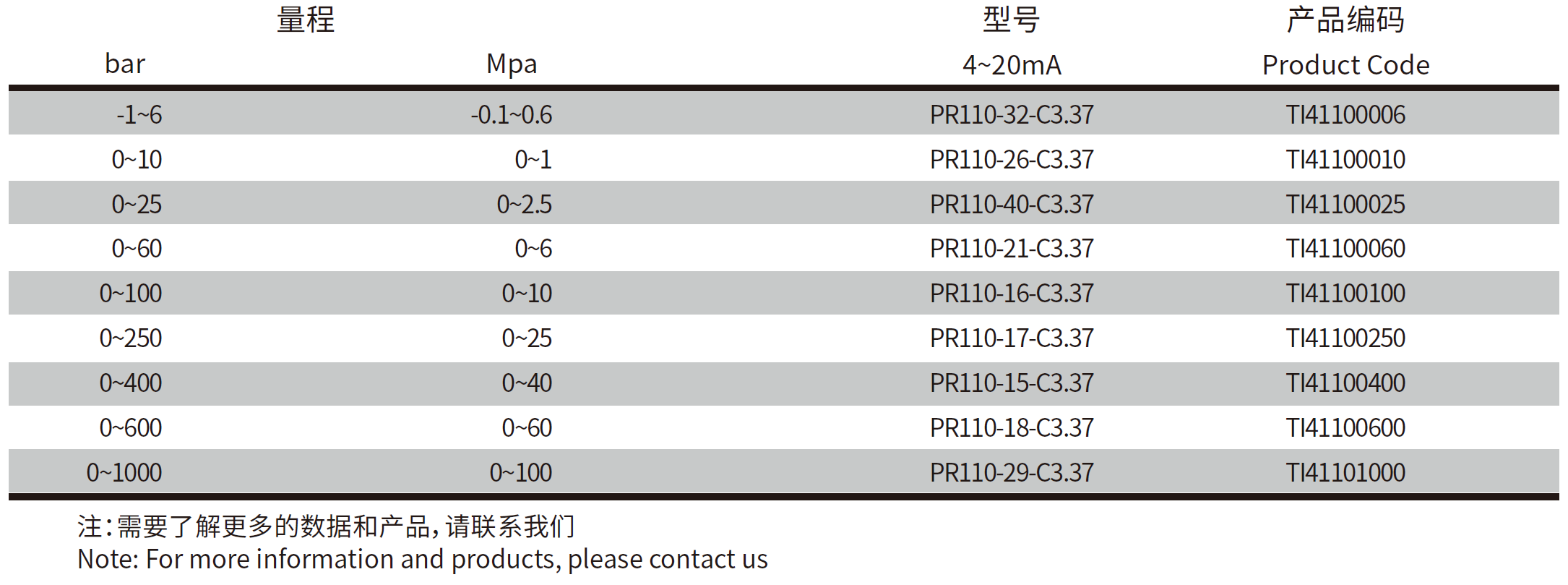

Net weight:~85g                                                                                                                                                                                 PR110 Pressure Sensors(图1)PR110.pdf
