PR150 Pressure Sensors

Product:

PR150 Pressure Sensors

Description:

Working principle: Piezoresistive effect
Pressure type: relative pressure
Output signal: 4~20mA/0~10VDC
Electrical connection: 4-pin plug.
DIN EN 175301-803 Type c
Mechanical connection:G1/4A,1S0 228
Seal material:DlN3689 standard seal, fluororubber
Protection grade: lP65
Casing material: non-corrosive high-strength steel
Membrane material: non-corrosive high-strength steel
Tightening torque: 40Nm (±5Nm)
Net weight:~97g

Consult Now

+86 0551-67291852

Product Details

Working principle: Piezoresistive effect

Pressure type: relative pressure

Output signal: 4~20mA/0~10VDC

Electrical connection: 4-pin plug.

DIN EN 175301-803 Type c

Mechanical connection:G1/4A,1S0 228

Seal material:DlN3689 standard seal, fluororubber

Protection grade: lP65

Casing material: non-corrosive high-strength steel

Membrane material: non-corrosive high-strength steel

Tightening torque: 40Nm (±5Nm)

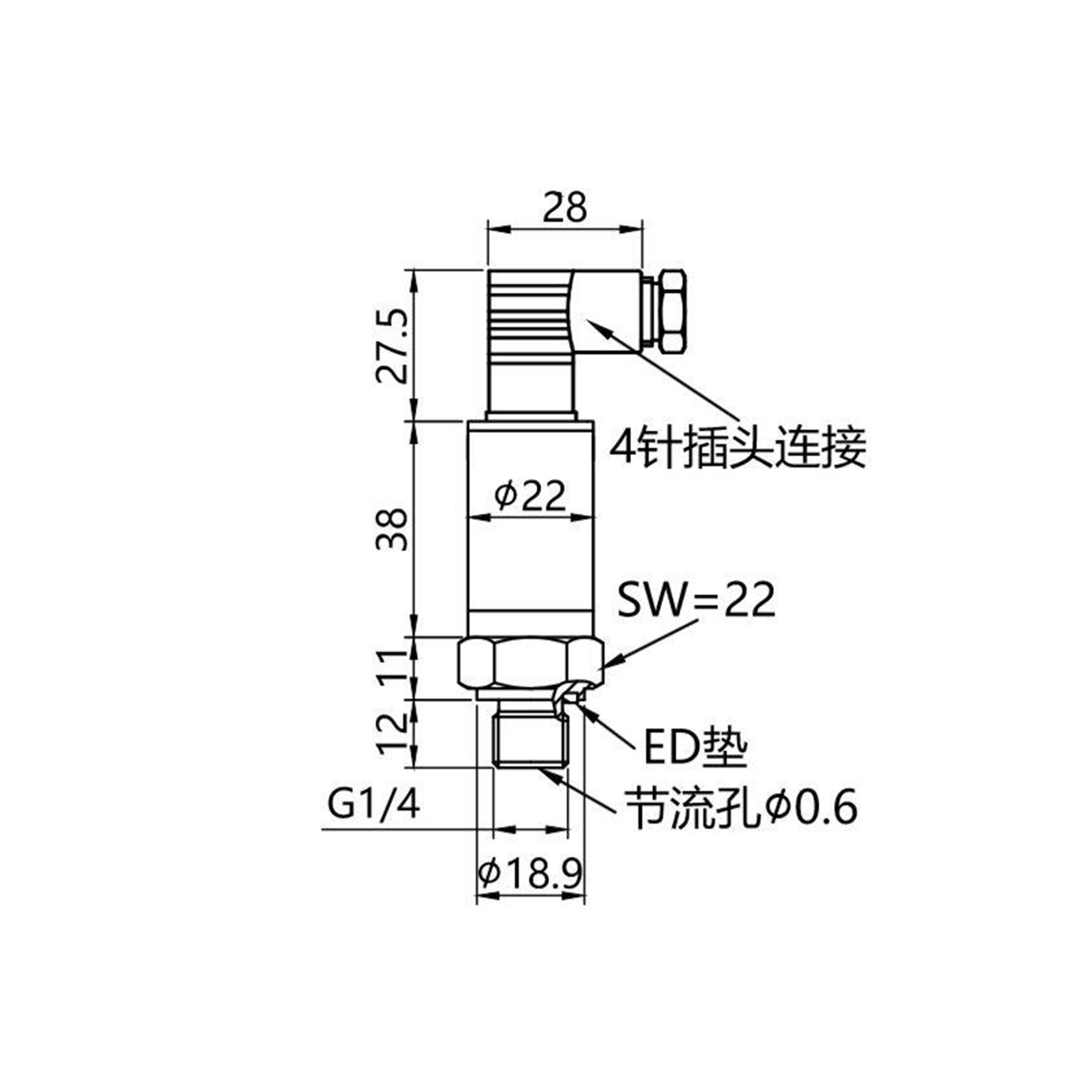

Net weight:~97g                                                                                                                                                                                   PR150 Pressure Sensors(图1)PR150.pdf
