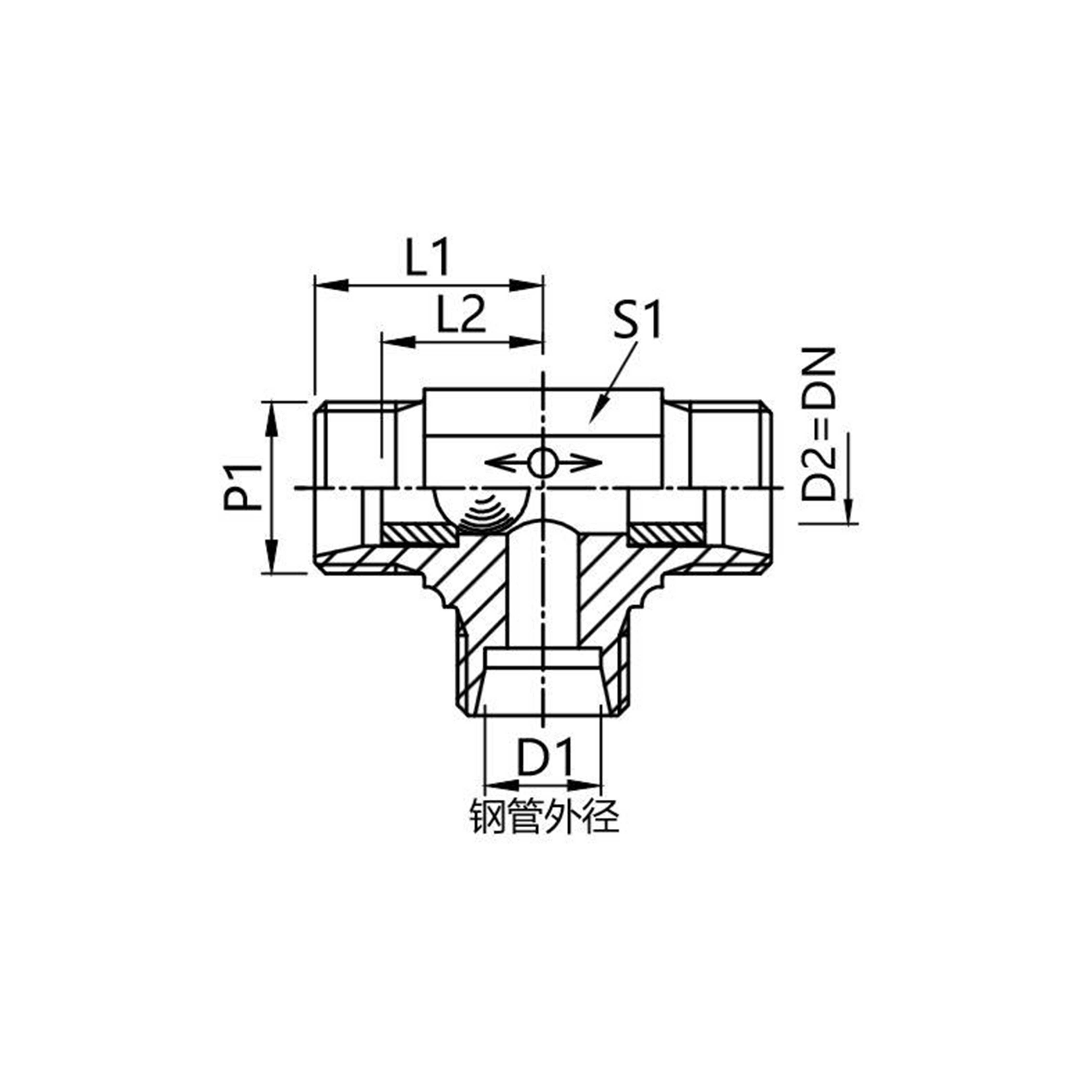

Comply with ls08434-1,24° ferrule connection
Generally supplied carbon steel/surface galvanized
Temperature:-40'C~+120°C
Leakage: 20 drops per minute at maximum pressure
Not connected with welding pipe and rotating nut
When the medium enters from the right inlet, the floating
steel ball automatically closes the left inlet under the power
of the medium
+86 0551-67291852
Comply with ls08434-1,24° ferrule connection
Generally supplied carbon steel/surface galvanized
Temperature:-40'C~+120°C
Leakage: 20 drops per minute at maximum pressure
Not connected with welding pipe and rotating nut
When the medium enters from the right inlet, the floating
steel ball automatically closes the left inlet under the power
of the medium
