Home > Products > Pipe Fittings > Hard pipe Fittings > American flared connector

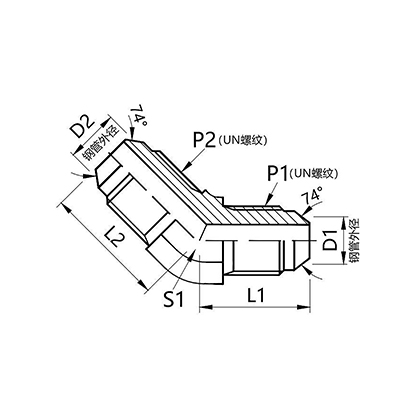

1J4 American Jlc external thread 74° external cone

Product:

1J4 American Jlc external thread 74° external cone

Description:

Regular supply carbon steel/galvanized surface
SAE J514/ISO 8434-2 standard connector

Consult Now

+86 0551-67291852

Product Details

Regular supply carbon steel/galvanized surface

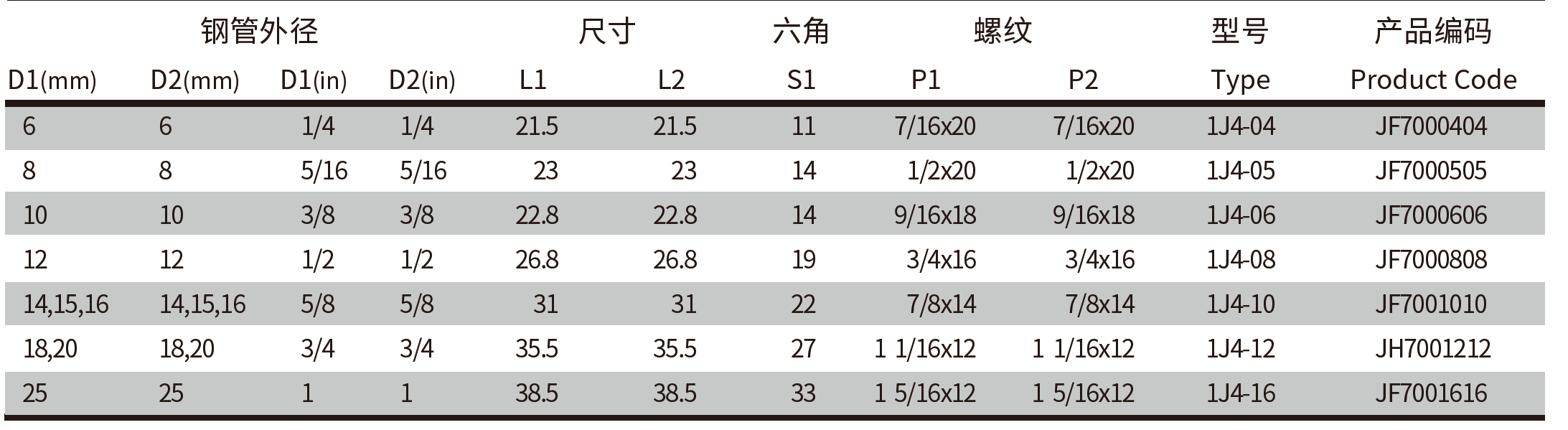

SAE J514/ISO 8434-2 standard connector                                                                                                                                                          1J4 American Jlc external thread 74° external cone(图1)1J4.pdf
