EGE-NPT Straight-through combination connector

Product:

EGE-NPT Straight-through combination connector

Description:

complies with lSO8434-1,24 ferrule connection
Commonly available carbon steel/galvanized surface, stainless steel
Fluororubber sealing ring available

Consult Now

+86 0551-67291852

Product Details

complies with lSO8434-1,24 ferrule connection

Commonly available carbon steel/galvanized surface, stainless steel

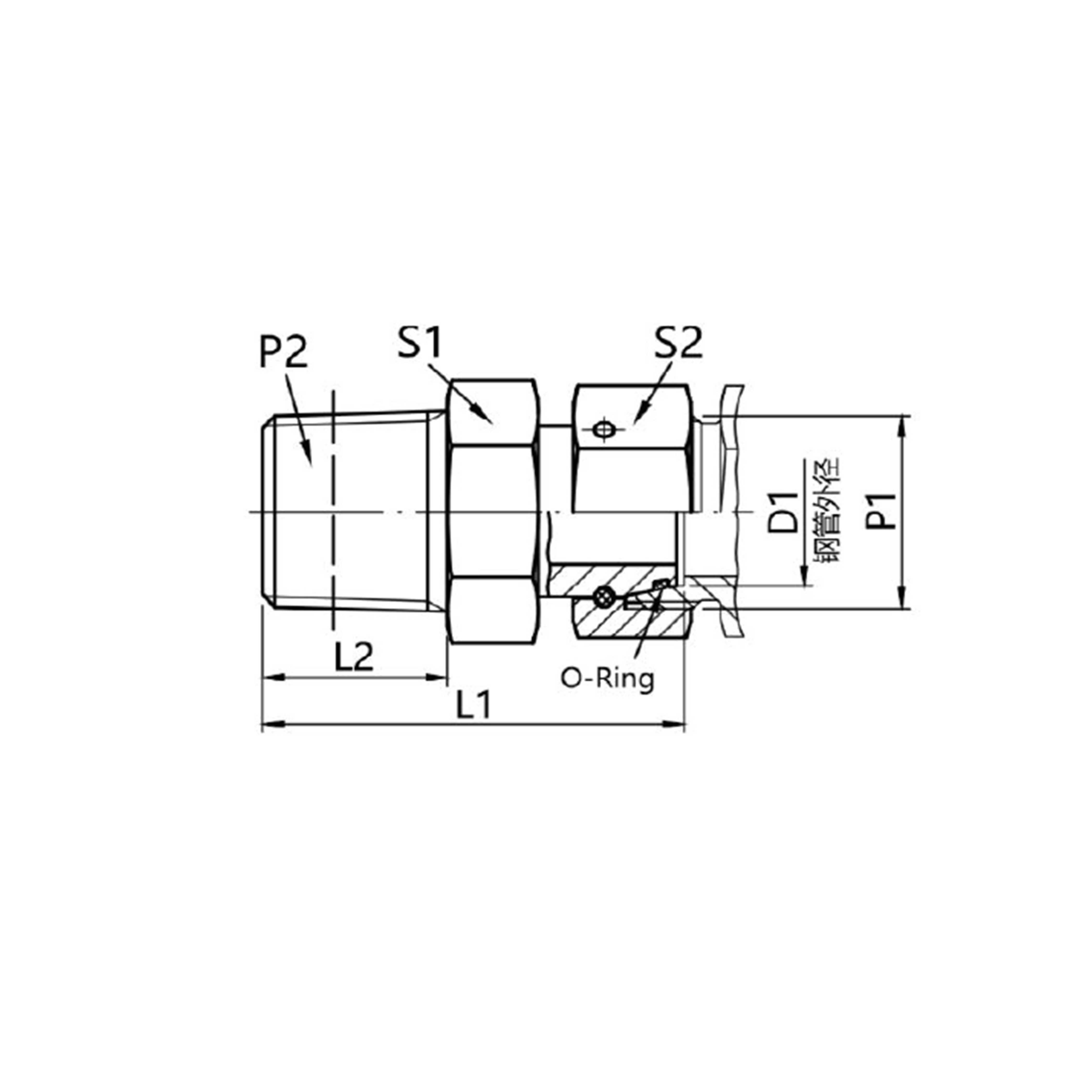

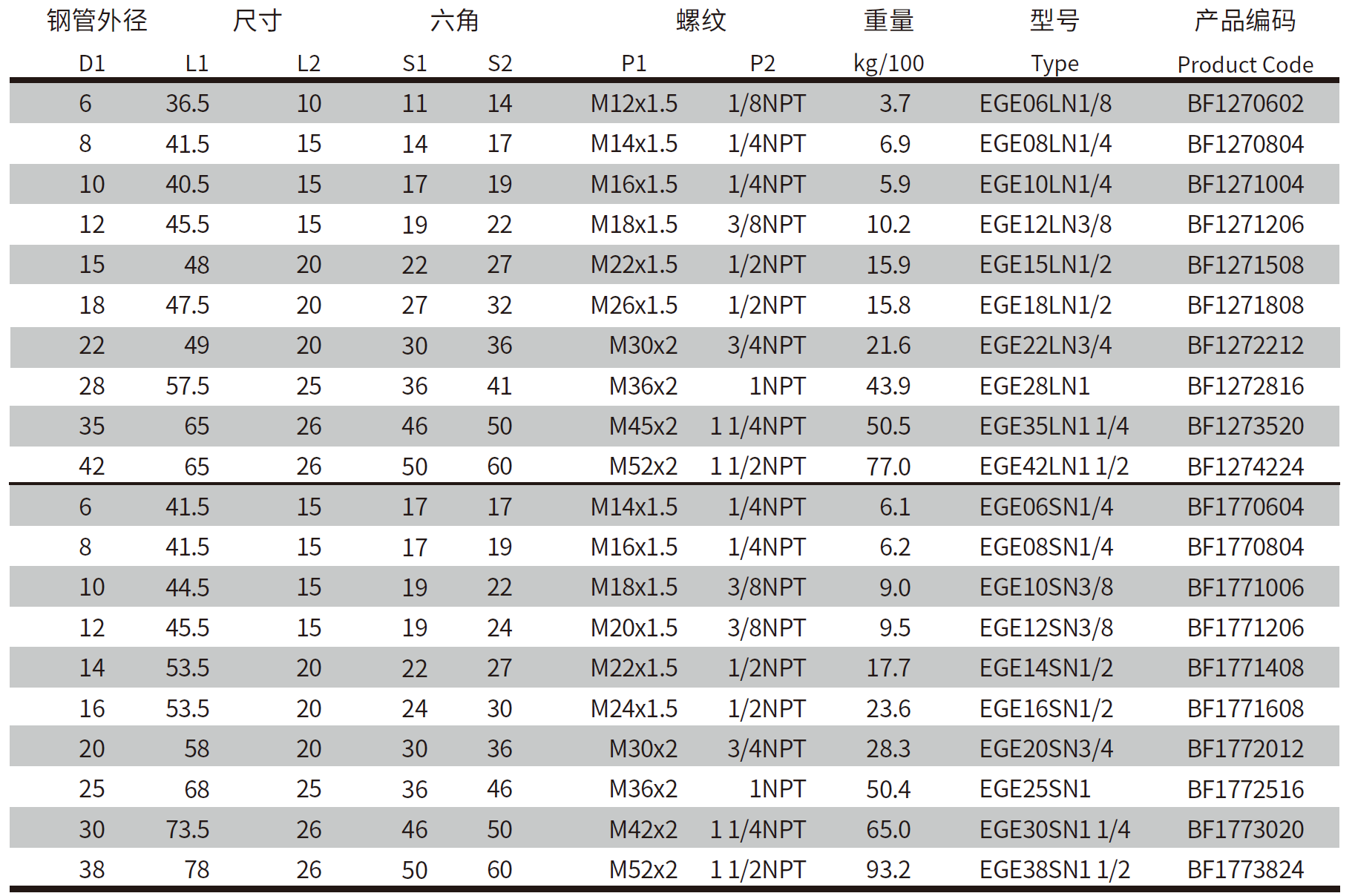

Fluororubber sealing ring available EGE-NPT Straight-through combination connector(图1) EGE-NPT.pdf
