PR140 Pressure Sensors

Product:

PR140 Pressure Sensors

Description:

Working principle: Piezoresistive effect
Pressure type: relative pressure
Output signal: 4~20mA/0~10VDC
Electrical connection: 4-pin plug.
DIN EN 175301-803 Type A
Mechanical connection: G1/4A, 1S0 228
Seal material:DlN3689 standard seal, fluororubber
Protection grade: lP65
Casing material: non-corrosive high-strength steel
Membrane material:non-corrosive high-strength stee!
Tightening torque: 40Nm(±5Nm)
Net weight:~117g

Consult Now

+86 0551-67291852

Product Details

Working principle: Piezoresistive effect

Pressure type: relative pressure

Output signal: 4~20mA/0~10VDC

Electrical connection: 4-pin plug.

DIN EN 175301-803 Type A

Mechanical connection: G1/4A, 1S0 228

Seal material:DlN3689 standard seal, fluororubber

Protection grade: lP65

Casing material: non-corrosive high-strength steel

Membrane material:non-corrosive high-strength stee!

Tightening torque: 40Nm(±5Nm)

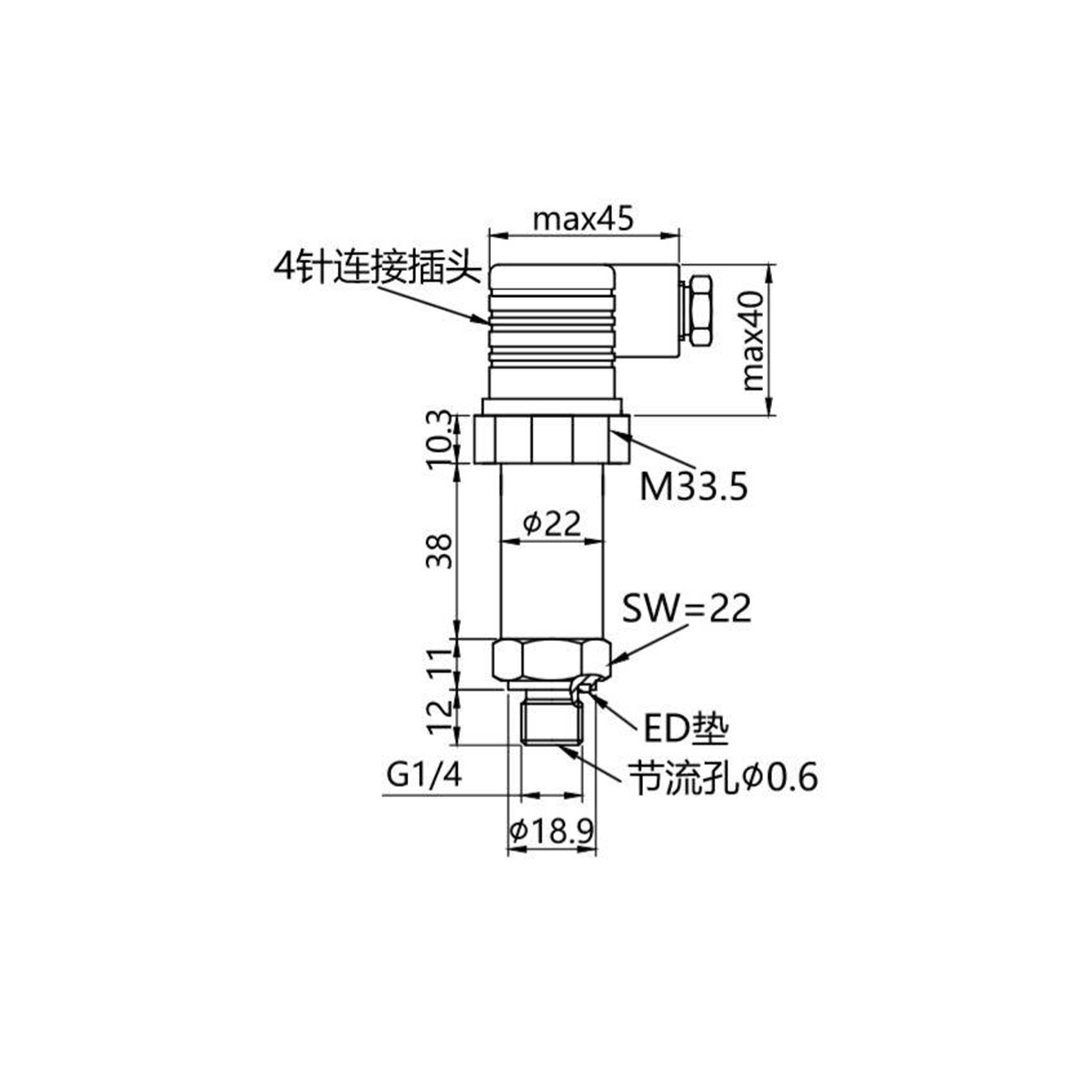

Net weight:~117g                                                                                                                                                                                  PR140 Pressure Sensors(图1)PR140.pdf
