Working principle: Pt 100 (according to DlN43760-B)
Connection point series: 1620 series
Output signal: 0~20mA (three-wire)/4~20mA (two-wire)
Supply voltage: 10~30VDC
Overvoltage protection: 36VDC
Maximum load pressure: 63Mpa
Ambient temperature:-20°C~+80°C
Electrical connection: 5-pin plug, M16x0.75

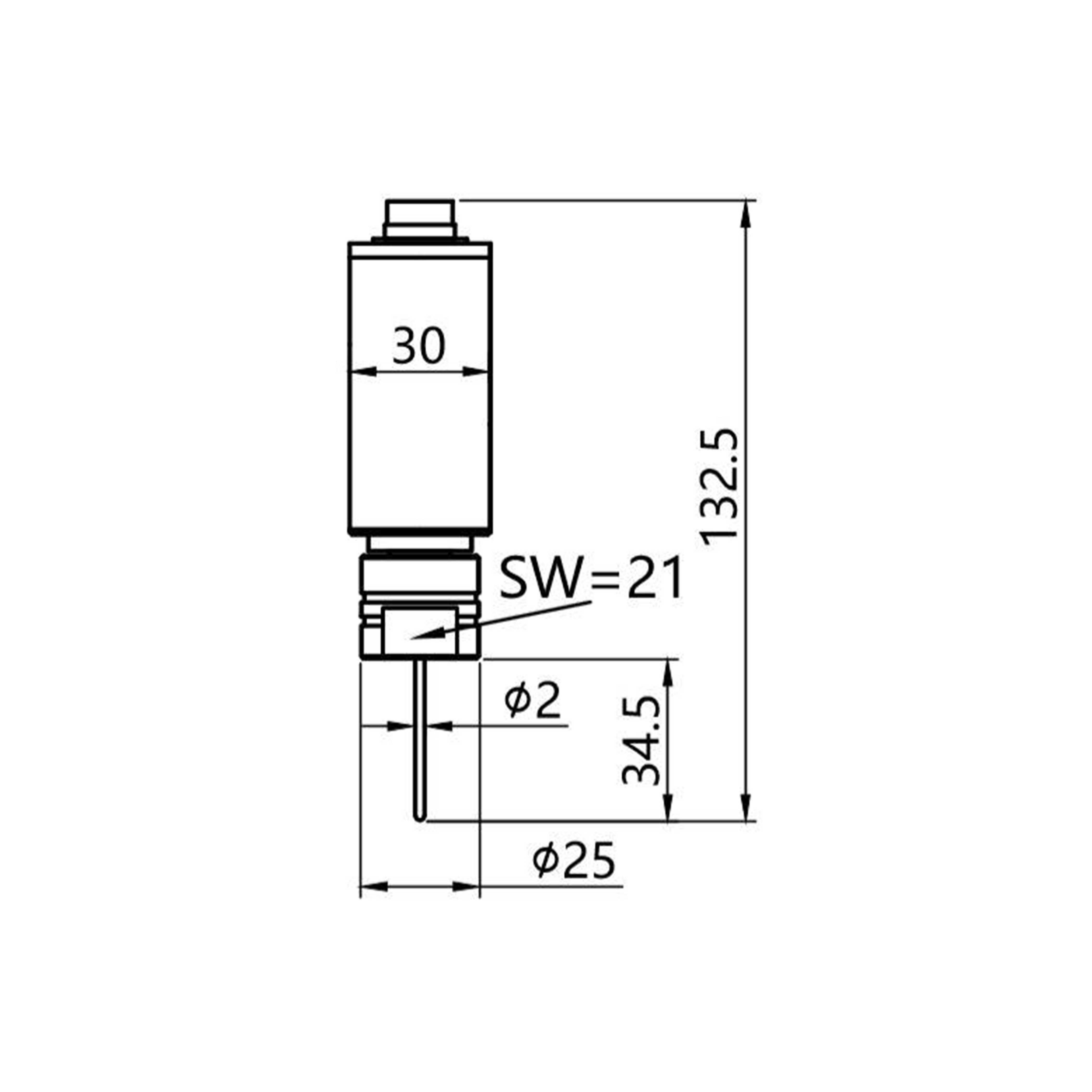

Mechanical connection: as shown in the figure
Protection level: lP67
Material: 1.4104
Range:-50'C~+200'C
Error: <± 1% of the range
Temperature error:<士0.3%/10'C
Net weight:~230g
+86 0551-67291852
Working principle: Pt 100 (according to DlN43760-B)
Connection point series: 1620 series
Output signal: 0~20mA (three-wire)/4~20mA (two-wire)
Supply voltage: 10~30VDC
Overvoltage protection: 36VDC
Maximum load pressure: 63Mpa
Ambient temperature:-20°C~+80°C
Electrical connection: 5-pin plug, M16x0.75
Mechanical connection: as shown in the figure
Protection level: lP67
Material: 1.4104
Range:-50'C~+200'C
Error: <± 1% of the range
Temperature error:<士0.3%/10'C
Net weight:~230g
